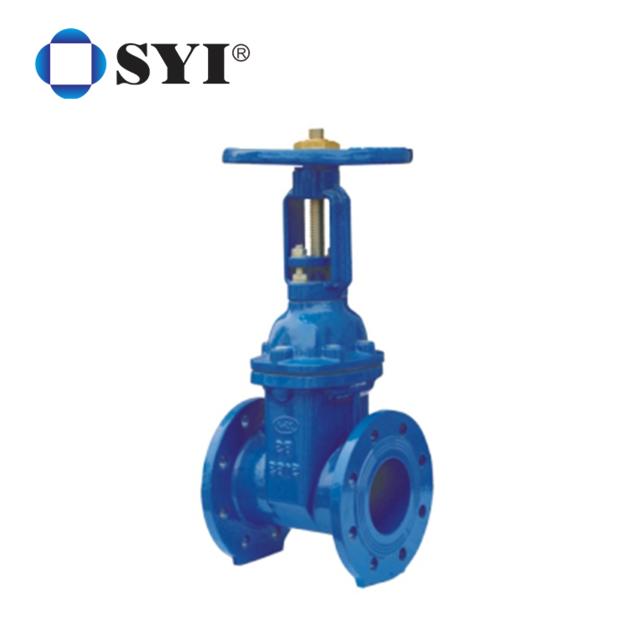

BS 5163 Rising Stem Resilient Seated Gate Valve
| Price: | US$ 20 / Piece |
|---|---|
| Minimum Order: | 30 |
| Payment Terms: | L/C,T/T |
| Port of Export: | Tianjin |
Product Details
| Model No.: | BS 5163 Rising Stem Resilient Seated | Brand Name: | SYI |
|---|
| Certification: | |
|---|---|
| Specification: | BS 5163 Rising Stem Resilient Seated Gate Valve adopt British Standard, it is with medium length, inside and outside epoxy resin coating, Three “O” ring sealing. these all insure excellent corrosion protection and reliable sealing capability. per request, the gate valves can be actuated by operating lever, hand wheel electrical actuator and so on. |
Packaging & Delivery
| Packaging: | Standard export package or as per your requirements |
|---|---|
| Delivery/Lead Time: | |
| Production Capacity: |
Product Description
Unique design:
Length: medium length
Compact design:one-piece bonnet, rising stem.
"O” ring design for stem back sealing leads to maintenance free.
Excellent Corrosion Protection:
Inside epoxy resin coating or vitreous enamel(upon request).
outside epoxy resin coating.. Socket head cap bolts,sealed with glue on the top.
Reliable Health Nature:.
Epoxy resin coating complies with the WARS certification
Wedge bonded with rubber for the health inspection.
Trims are made of stainless steel or bronze
Scope Of Application:.
Potable water supply.industrial fields.
Technical Specifications:
Design: BS5163
Face to face: BS5163 / ISO5752 SERIES3 / ASME B16.10
Flange drilled : DIN2531/ DIN2532 / DIN2533 / EN1092
Working Temperature: 0- 100℃
Working pressure: PN10 / PN16
Main Dimensions:
Unit: mm
DN L D
PN10 PN16
40 165 150 150
50 178 165 165
65 190 185 185
80 203 200 200
100 229 220 220
125 254 250 250
150 267 285 285
200 292 340 340
250 330 400 400
300 356 455 455
350 381 505 520
400 406 565 580
450 432 615 640
500 457 670 715
600 508 780 840
700 610 895 910
800 660 1015 1025
900 711 1115 1125
1000 811 1230 1255
1200 / 1455 1485
For other sizes not mentioned above, please contact us.
We have right to change the data without further notice.
|
