Automatic Magnetic Stripe Bonding Machine YASB-1
| Price: | US$ 1 / Set |
|---|---|
| Minimum Order: | 1 SET |
| Payment Terms: | TT,Western Union, Paybal,Etc. |
| Port of Export: | Shenzhen Port |
Product Details
| Model No.: | YASB-1 | Brand Name: | YL |
|---|
| Certification: | |
|---|---|

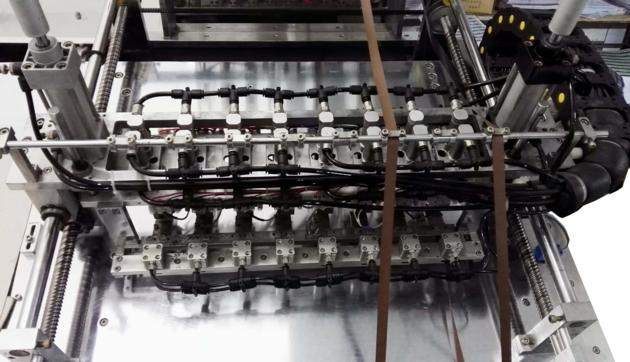

| Specification: | Automatic Magnetic Stripe Bonding Machine YASB-1 is designed for laying and bonding the magnetic stripe onto the coated overlay or printed PVC sheet in a accurate and speedy way. It is controlled by PLC system and adopts a smart touching screen. The clamp clips the tap and the card at the same time. Material is fed automatically by quality servo motor. The magnetic stripe laying and bonding can be realized at the same time. Flexible choice of card material layout is available (such as 3×8, 4×8 and 5×5). |
Packaging & Delivery
| Packaging: | Strong plywood package with proper soft protection material inside,suitable for long distance for se |
|---|---|
| Delivery/Lead Time: | 25-40 DAYS |
| Production Capacity: | 12 sets per month |
Product Description
Key Features:
1. The machine design is compact and easy in operation.
2. The maximum 8 magnetic strips can be bonded at same time.
3. All the bonding spots are welded at the same time, which can ensure tidy and beautiful finish.
4. It is automatically controlled in operation by PLC, and automatic error alarm is available.
5. Bonding point position, bonding time and temperature are adjustable.
6. It features reasonable design for transmission and cutting of magnetic strips, which can minimize the waste of magnetic stripes.
Technical Parameters:
Machine Model YASB-1
Power supply AC 220V 50HZ 2.5KW
Air pressure 6kg/cm3 square
Size of work table L520xW500mm
Production capacity 400-650 plates/hour
Bonding point position precision «0.1mm
Control method PLC program + servo system
Operator 1 person
Weight 200kg Approx
Overall dimension L1560xW800xH1500cm
|
