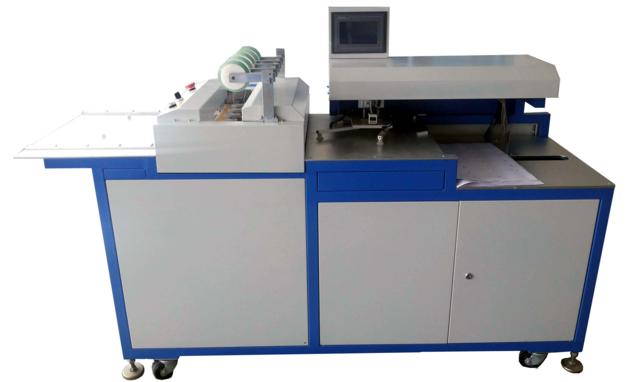

Automatic Glue Tape Applicator YGA-1000
| Price: | US$ 1 / Set |
|---|---|
| Minimum Order: | 1 SET |
| Payment Terms: | TT,Western Union, Paybal,Etc. |
| Port of Export: | Shenzhen Port |
Product Details
| Model No.: | YGA-1000 | Brand Name: | YL |
|---|
| Certification: | |
|---|---|
| Specification: | Automatic glue tape pastor, glue tape pasting machine, RFID card INLAY sheet production machine, RFID card prelam sheet production line, RFID card machine, contactless card production machine, RFID card INLAY/prelim sheet production machine |
Packaging & Delivery
| Packaging: | Strong plywood package with proper soft protection material inside,suitable for long distance for se |
|---|---|
| Delivery/Lead Time: | 25-40 DAYS |
| Production Capacity: | 12 sets per month |
Product Description
Automatic Glue Tape Applicator YGA-1000 is designed for pasting the glue tapes onto the punched INLAY middle sheets in the process of INLAY production. The pasted glue tapes are used for temporarily sticking the chips for chip bonding process. It can greatly lower the needed labor power.
Key Features:
PLC is applied to control the machine operation with friendly man-machine interface.
Automatic sheet pick-placing system is applied in the machine.
Dual-interface card INLAY sheets can be processed with this machine.
Custom-made layout of INLAY sheets to be processed is available.
Technical specification
Power supply AC 220V 50/60 HZ Control method PLC + touch screen
Total power 1.5 KW Sheet layout 5*5,3*8, 4*8, etc
Air source 6kg/cm2 (dry) weight Approx 300 Kg
Dimension
L2000xW680xH1350 mm
Speed 800-1000 sheets/h as per different layout.
|
