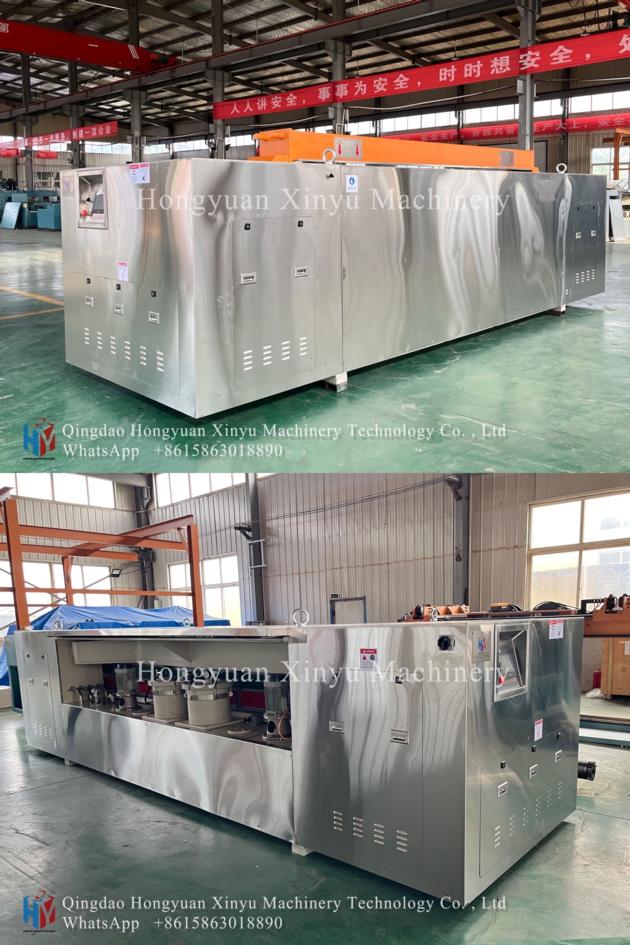

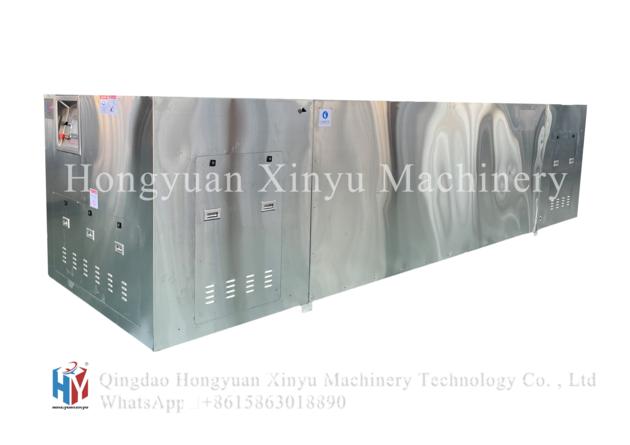

Automatic Electroplating Line For Rotogravure Cylinder Making

The fully automatic plating line is improved on the basis of the traditional plating line. It realizes the centralized PLC or microcomputer program control in the whole line, which has high working efficiency, fewer operators and less floor space, stable quality, long service life and convenient maintenance.

Product Characteristics

1.Scientific design, reasonable structure: this machine combines designers’ more than ten years of design and use experience, so that the production line fully reflects the company’s product concept of Economic, efficient, practical in the design and structure.

2.Machine Material Selection

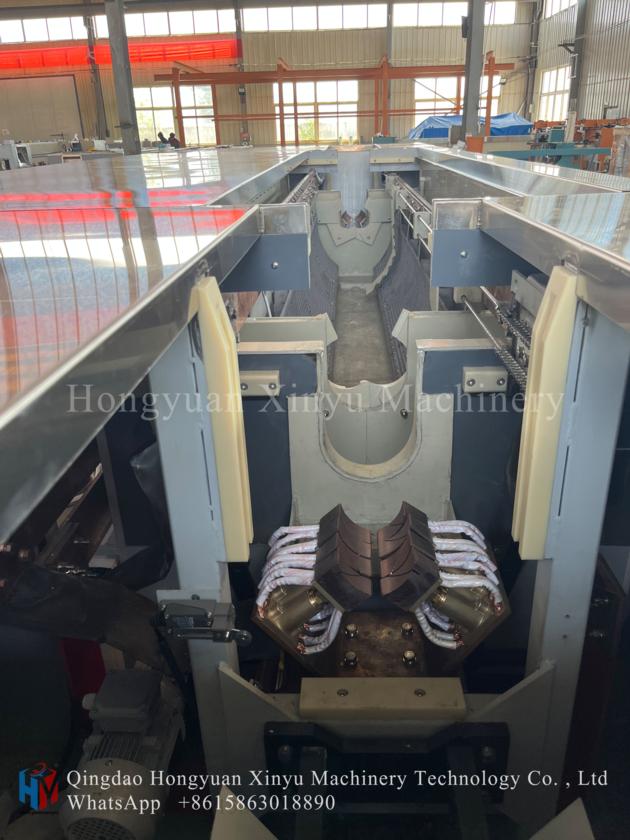

Chrome Machine: Storage tank, working tank are made of TA2 material with a long life and no leakage. Anode uses two forms of hanging and rotating column. And it is automatic positioning. Anode can adopt platinum titanium anode and lead-antimony alloys. The liquid feeding system adopts the titanium liquid feeding pump, which has long service life and no leakage.

Copper Machine: ANODE can adopt two forms of hanging column and rotating column; it’s automatic positioning; the new type titanium filter improves the products filtering and sealing effects; titanium (TA2) heating pipe and temperature control system; Japanese Yiweiqi additive pump has high precision and long service life; the storage tank is supported by stiffening rib and sealed by fixing edge.

3.The electronic component adopts Japanese Omron inverter, which guarantees the current stability and the electric appliance service life. The operation adopts the programmable controller, which makes the machine achieve automation on feeding the liquid, anode automatic positioning and other operations.
