Anpeng Self Cleaning Screen Mesh

Anpeng Self Cleaning Wire Mesh series is designed for though to screen applications where blinding, pegging and clogging are a crucial problem. PU bands, made with 90 Shore A ( Poly Hardness ) polyurethane, bind together with steel wires allowing high-frequency vibration during screening and creating the self-cleaning effect. Each wire on self cleaning screen vibrates at different frequency, which creates the self-cleaning effects of all our self-cleaning series. The theory behind is that a clogged material is able to pass through or bounce back up, because the different vibration frequency in wires is essentially creating alternating force from opposite side of the mesh. Anpeng self-cleaning series offers greater wear resistance and longer wear life, promises to significantly increase efficiency and lower cost of production.

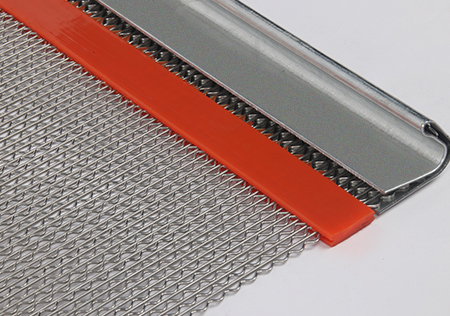

Diamond Opening Screen
Our most popular self cleaning screen mesh. It is similar to traditional square openings meshes, but with greater open area and increased throughput, providing precise material stratification and cleaner product.

Wire diameter: 1.2mm-12.7mm Opening size: 2.24mm~62.00mm This series produces high quality, consistent product and is effective in most general applications.

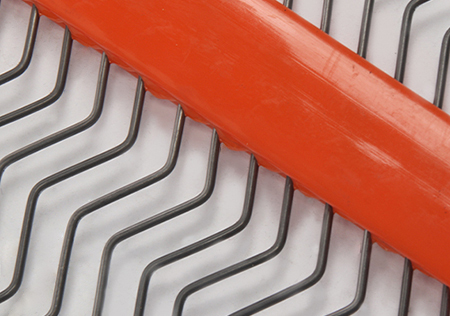

Wave Opening Screen
Made with crimped wires placed parallel to each other, best used for severe blinding application, large open area offers effective sizing control, ideal for the removal of super fine materials and etc.

Wire diameter: 1.2mm-12.7mm Opening size:3.18mm~17.15mm This series delivers maximum throughput and ideal for removal of fines, producing a cleaner retained product.

Triangle Opening Screen
Unique combination of crimped and straight wire form the triangular opening shape to absorb impact, and improve accuracy of sizing. This is a perfect replacement of traditional fine mesh.

Wire diameter: 1.2mm-12.7mm Opening size:1.2mm~20.00mm This series is designed for finer size material and absorb greater impact while maintaining accurate sizing.

If you need any kinds of industrial mesh screen, please contact us, as a professional industrial screen manufacturer, Anpeng is willing to offer you high quality products.
