Aluminum Honeycomb Panel

Aluminum Honeycomb Panel withstand repeated cleaning and sanitizing with various chemicals to resists microbial and fungal growth. They are non-outgassing, non-particle shedding and anti-static as well as lightweight and non-combustible.

Description of Aluminum Honeycomb Panel

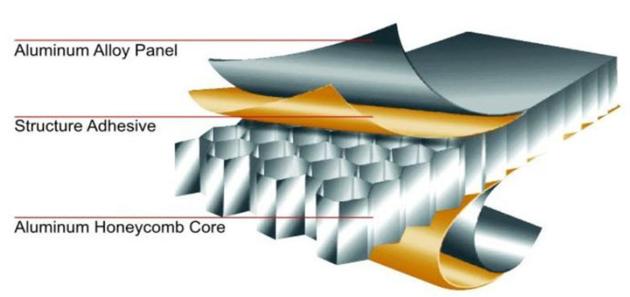

The aluminum honeycomb panel has two layers of corrosion-resistant Peraluman alloys (AlMg) on both sides of the cover and an intermediate honeycomb made of the alloy AlMn (EN AW 3003) Cell size is approx. 6.3 – 12.7 mm. and the skin may be used in a decorative or functional manner, depending on the purpose of application.

Advantages of Aluminum Honeycomb Panel

Aluminum honeycomb panel has been widely used in clean room partitions and ceilings due to their advantages of light weight, high strength and high rigidity.

Lightweight

These Aluminum honeycomb panel are prized for their extremely low weight, without compromising on strength. Although they are not as lightweight as some materials, the honeycomb structure means that in certain applications, these panels are up to 40 times stronger.

Thermal efficiency

The thermal efficiency of aluminium honeycomb panel makes them highly resistant to temperature fluctuations. Although the aluminium material offers no heat insulation, the hexagonal cellular structure creates a series of closed spaces with air layers between the skins. This prevents airflow and makes it difficult for heat to effectively transmit and convert throughout the panel.

Corrosion resistant


Aluminium honeycomb panel cores are moisture-resistant, which provides these panels with highly corrosion-resistant properties. The panels also benefit from being resistant to mould and fungal growth within enclosed spaces.

Sound insulation

SDpanel Aluminium honeycomb panel are prized for their sound absorption and sound transmission loss. The aluminium honeycomb core acts as an effective barrier, which prevents sound from being transmitted, whilst also absorbing the sound by reducing the reflection of sound around a room. Despite aluminium having no sound insulation properties, the actual core cell design ensures these panels offer effective sound insulation performance.

Rigidity

Despite being low in weight, the material used to create the panel core, and the design of the honeycomb structure ensures that these panels are extremely rigid.

The high strength to weight ratio is among the highest of all honeycomb composite panels which are currently available. The material’s properties and connectivity of the cells provide increased stability and rigidity makes these honeycomb panels ideal for many, high specification industries.
