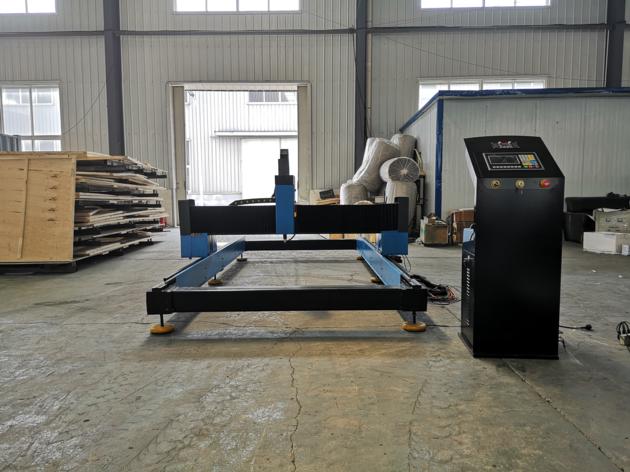

Affordable lgk hypertherm light gantry CNC plasma cutting machine

This light gantry CNC plasma cutting machine doesn't have working table, so it can withstand heavy cutting of iron sheet. When we ship this machine, we can dismantle the whole machine, the packing size is only 4 cbm. So this can save a lot of transportation costs. It can be equipped with any plasma power supply, such as China Huayuan, American Hypertherm and so on.

Applicable Materials:
Sheet and tube of carbon steel, stainless steel, aluminum, copper and other non-ferrous metal .

Features of light gantry CNC plasma cutting machine:
1. Two cutting modes optional: plasma plate cutting and tube cutting.
2. Gantry structure, perfect bearing capability. The machines’ body is strong, rigid, high precision, reliable and durable.
3. Adopt well known plasma power USA Hypertherm supply and cutting torch.
4. Cutting edge is small and smooth ,without any drop outs, thickness for metal cutting is up to 30mm.
5. With Arc voltage Auto Height-adjusting Device, arcing success rate over 99% and can protect cutting torch from damage, increase cutting quality.
6. Adopts Imported high-precision Hiwin Linear guide rails, smooth movement, to ensure that the machine tools high-precision.
7. Drive gear and rack ,customized from professional manufacturer, is surface processed by cemented quenching, which can prolong machine’s using life.
8. Step and Servo drive system is available, which with features of function detecting ,high running precision, wide speed range and short speed up time.

Parameters of light gantry CNC plasma cutting machine:
Model RB-1530
Working Voltage AC 220V/380V, 50HZ
Working Size 1500mm*3000mm
Max Cutting Speed 20000mm/min
Cutting Thickness(Plasma)(mm) 1-30mm
Power 45A/65A/85A/105A/125A/200A
Precision ¯0.01mm
File output mode USB interface
Command Code G code/*.MMG/*.PLT/*.eng
Packing type Standard plywood case
Table Saw tooth table(Optional Blade table)
Weight 1500KG

After-sale service of light gantry CNC plasma cutting machine:
→2 years quality guaranty.
→ Lifetime maintenance free of charge.
→ Free training course at our plant.
→Machine has been adjusted before delivery. You can operate it normally when you received.
→Providing distance teaching.
→24 hours on line service and email each day, free technical support.
