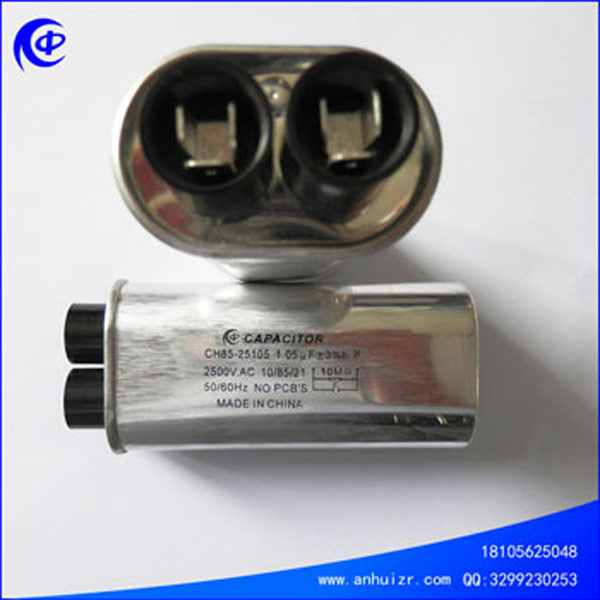

Ac high voltage capacitor microwave oven capacitor 2100vac 2300vac 2500vac 3000vac 0.85uf 0.91uf 1.0

Introduction:

1.MICROWAVE OVEN CAPACITOR have the capacity of high precision, high operating voltage in the stable performance for industrial and domestic microwave ovens and other high-voltage AC circuits, the product structure of composite media for the oil is the main parts of microwave oven.
2. Small size light weight.
3. Use of high voltage insulating oil, the whole sealed structure, good heat dissipation, can enhance product life.
4. Composite insulating medium, the product high pressure, electrical properties and stability.

Specifications:

Microwave oven capacitor/H.V capacitor
Rated: 2100V, 2500V 50/60Hz
Capacitance: 0.8-1.2uF
Temp:-10-+85 deg C
Reference standards IEC61270-1
Rated capacitance CR 0.5µF ~ 1.23µF (MFD)
Tolerance ± 1%, ±3%, ±4% or fulfilled upon request
Rated voltage VR 2000VAC,2100VAC,2300VAC,2500VAC,3000VAC
Rated frequency FR 50/60Hz
Discharge resistor 10MΩ ± 10%
T-T DC 4.3Un / 10S
T-C 6000VAC / 60S
Dissipation factor tan δ ≤ 0.01 (50Hz)
Climate types -10°C ~ +85°C
