AUTOMATED SCANNING AND WEIGHING LINE(DWS)

Four indicators: Small footprint, wide application range, labor force reducing, high efficiency

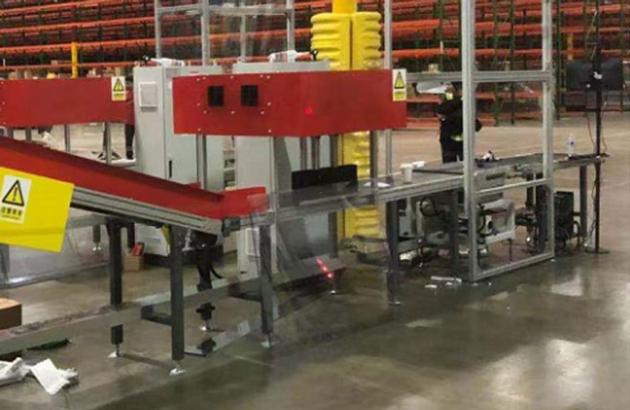

Automated scanning and weighing line: it's used at the inbound and outbound ends of parcels on each sorting conveyor belt, with camera installed for data identification and automated vulnerability scanning. The camera also can read barcode, weigh the parcel through the automated weighing and measure parcel dimension. Parcel scanning and weighing status (normal parcel or abnormal parcel) will be known after the system interchanging information with customer system. Normal parcels will directly pass through the automatic scanning and weighing system, but abnormal parcels after automatic weighing will be pushed aside by partition for sorting operator to check and handle it.

The automated scanning and automated weighing system greatly reduces manual checking workload, and improves sorting efficiency, also cuts down the time and labor cost. Thus this package sorting machine plays an important role and means a lot in parcel sorting.

Specification of Small Parcel DWS
No. Item name Parameter
1 Overall dimension Width4800mmXLength1300mmXHeight1000mm
2 Power supply Single phase220V Power1.43KW
3 Conveying line speed 0.6—1.0M/S（adjustable）
4 Efficiency Theoretical efficiency up to 6000pcs/hr，actual efficiency 2000~3600pcs/hr
5 Barcode reader HIKVISION/DATALOGIC/SICK/COGNEX（customizable）
6 Dynamic scale Weighing range： 10g – 6Kg Weighing precision：¯2g，¯5g，¯10g
Maximum parcel size：Length400mmxWidth320mmxHeight250mm
7 Dimension measuring Minimum parcel size： Length100mm xWidth60mm xHeight1mm
Measuring precision：¯10mm(HIKVISION）/ ¯ 5mm(datalogic/SICK)
Specification of Large Parcel DWS
No. Item name Parameter
1 Overall dimension Width4000mmXLength1300mmXHeight1500mm，angle 14 （customizable according to actual need）（Optional removing device, push plate, turntable, transfer conveyor can be added, or coordinating with sorter module）
2 Power supply 3phase380V Power4.1KW
3 Conveying line speed 0.6——1.5M/S（Adjustable） Geared motor ：SEW 1.1KW/1.5KW
4 Efficiency 1800~3600pcs/hr（customizable）
5 Barcode reader HIKVISION/DATALOGIC/SICK/COGNEX（customizable）
6 Plane dynamic scale Weighing range： 300g – 60Kg Weighing precision：¯10g，¯20g，¯60g（customizable）
Maximum parcel size：Length1000mmxWidth700mmxHeight700mm
7 Dimension measuring Minimum parcel size： Length200mm xWidth100mm xHeight100 mm
Measuring precision：¯10mm(HIKVISION）/ ¯ 5mm(datalogic/SICK) （customizable）

Advantages of Automated Scanning and Weighing Line(DWS)
Linear design, compact structure, small footprint, much space saving
Wide application range, applicable for various goods with different sizes, shapes and natures, lower than 10kg, including very small and thin ones
Extremely low running noise
Low operation and maintenance cost. And this materials handling system is easy and safe to operate.
Application Industries of Small Parcel DWS
Cross-border e-commerce industry
Express industry
Postal industry


Application Scenarios of Small Parcel DWS
The fuction of small parcel DWS is similar with quick sorter. Small parcel DWS is often applied in cross-border e-commerce, postal small packet service, warehouse inbound/outbound auto barcode reading, weighing and dimension measuring.


Application Industries of Large Parcel DWS
E-commerce industry

Express industry

Cosmetics industry

Application Scenarios of Large Parcel DWS
Applicable for small packet in e-commerce express industry, warehouse inbound/outbound auto barcode reading, weighing and dimension measuring.

Lisen Automation group is a national asrs companies and material handling company, we provide food production automation, automation in food industry and etc. Want to know more? Please contact us.
