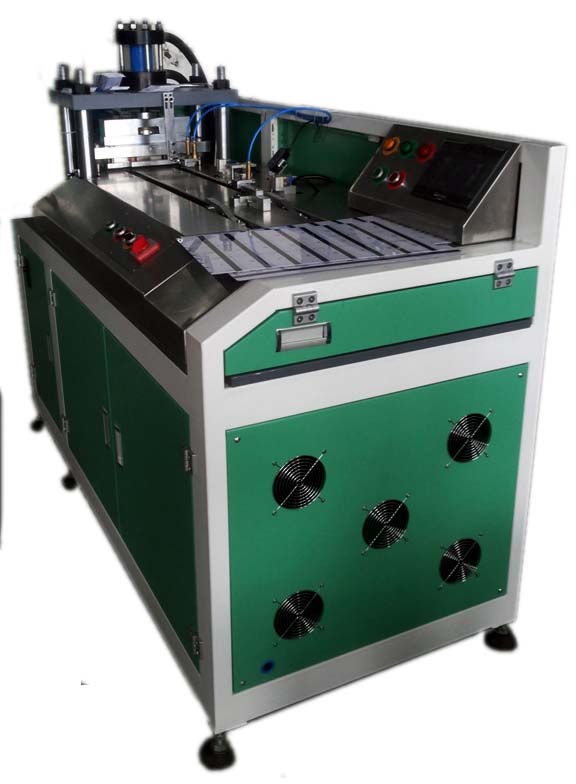

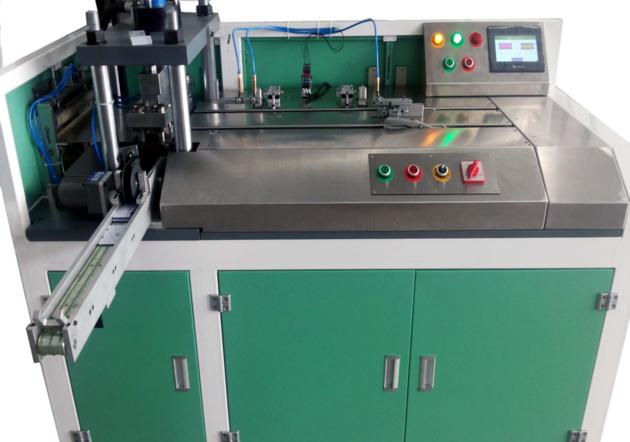

A3 sheet puncher_Speedy Plastic Card Punching machine YLP-3
| Price: | US$ 1 / Set |
|---|---|
| Minimum Order: | 1 SET |
| Payment Terms: | TT, WESTERN UNION, PAYBAL etc |
| Port of Export: | Shenzhen Port |
Product Details
| Model No.: | YLP-3 | Brand Name: | YL |
|---|
| Certification: | |
|---|---|
| Specification: |
A3 sheet puncher, plastic card puncher, card die cutter, card punching machine, card machine, card production machine
It is applied for punching the laminated plastic sheets ( 3×7/3×8/3×10 layout) into ISO CR80 cards in a speedy and precise way |
Packaging & Delivery
| Packaging: | Strong plywood package with proper soft protection material inside,suitable for long distance for se |
|---|---|
| Delivery/Lead Time: | 20-40 DAYS |
| Production Capacity: | 10 sets per month |
Product Description
Feature Description
It is applied for punching the laminated plastic sheets ( 3×7/3×8/3×10 layout) into ISO CR80 cards in a speedy and precise way.
It applies high-quality PLC, touch screen and servo system in order to ensure the machine stability;
The guide screws applied can well ensure the card conveying and punching precision.
The reliable hydraulic system is applied to ensure low noise and stable pressure control.
The punching mould is specially designed to ensure perfect punching result and long-time service life.
Technical Parameters
1. Max. Speed: 10000-12000 cards per hour
2. Applicable PVC sheet layout: 3×7/3×8/3×10
3. Dimension: 1700mm×800mm×1500mm
4. Weight: 650Kg
5. Power supply: AC380V 50/60HZ
6. Power rating: 2.5 KW
7. Compressed air: 6KG/CM2
8. Hydraulic pressure: ≤30Kg/CM
9. Service life for 3-up punching mould: 250-280 million cards
|
