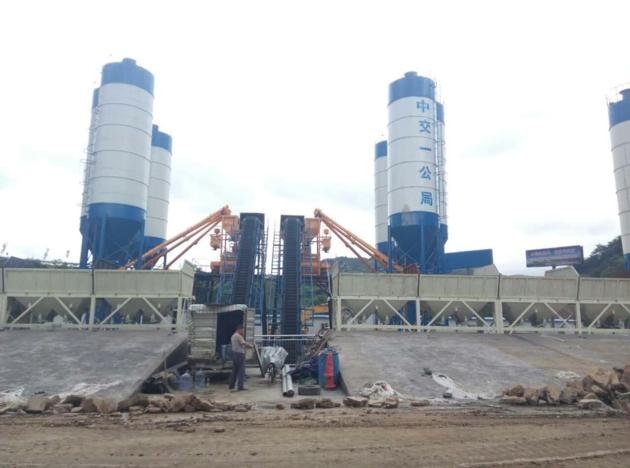

75m¯/h Concrete Batching Plant

　　The HZS series concrete batching plant which can produce plastic concrete and dry concrete efficiently is an ideal equipment to produce commercial concrete.
　　The plant adopts the JS series twin-shaft concrete mixer which has lots of advantages such as mixing easily and efficiently long operating life facilitating maintenance etc.
　　The mixer uses the latest design procedures including electronic weighing microcomputer control digital display calculating accurately. The material loading system is also the ideal choice for producing high quality concrete.
　　HZS series concrete batching plant is composed of aggregate batcher concrete mixer cement supply system water supply system cement weighing system water weighing system and control system and so on.
　　Concrete mixer
　　1.Horizontal twin-shaft compulsory mixer has strong mixing ability it can mix the materials evenly and effectively. It can mix concrete with different slumps and raw materials ratio. Its mixing blade and lining board are made of high chromium wear-resistant alloy. External shaft end support and special shaft seal ensure the long sevice life of the mixer.
　　Aggregates batcher
　　The quantity of aggregate silos depends on the customer’s requirements usually three silos. A wheel loader can be used to transferthe aggregates to the aggregate silos. In the bottom of the aggregate silo there are one fine aggregate and one coarse aggregate discharging gate. Once receiving signals the cylinder will open the discharging gate and the aggregates are discharged into the weighing hopper respectively.
　　Weighing system
　　It adopts special DSB-III it has the function of automatic difference compenstaion. aggregates cement water and additive all has their own weighing machine and the results are accurate.
　　Aggregate transfering system
　　After weighing the aggregate are sent to the hopper from the hopper the aggregates are dicharged into the mixer.
　　Control system
　　The whole plant is controlled by industrial control computer. This system has the following features:real-time data processing function; both automatic and manual control are available; simple and convenient operation. It can save all the data of the plant and the materials ratio; It can also print all the report forms. Constant temperature containerized type of control room adopts sound and heat insulation colorful battenboard which can ensure the working temperature of electrical devices and also provide a comfortable enviroment for the operator.
