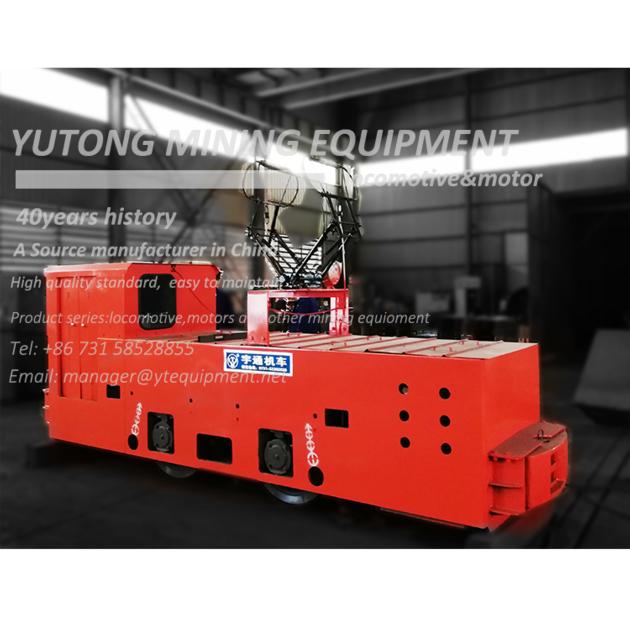

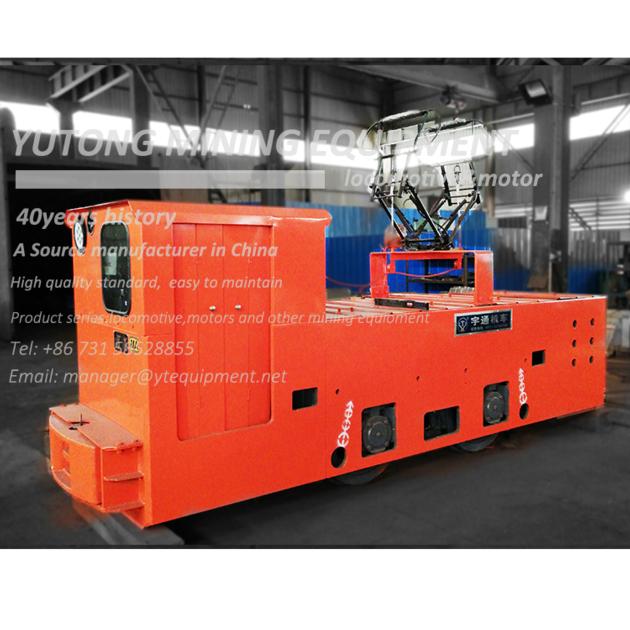

6 Ton Trolley Accumulator Locomotive for Underground Mining
| Price: | US$ 18000 / Set |
|---|---|
| Minimum Order: | 1 |
| Payment Terms: | L/C,T/T |
| Port of Export: | Guangzhou |
Product Details
| Model No.: | CJY6 | Brand Name: | YUTONG |
|---|
| Certification: | CE,ISO |
|---|---|
| Specification: |
Adhesive / total weight (t) : 6 ton
Track gauge (mm) : 500.600,762 or 900 Traction (KN) : 11.94kN Max. Traction (KN) : 14.7kN Speed(km/h) : 10km/h Voltage : 250V or 550V Power (KW) : 18kw *2 Dimensions Length(mm) : 4430mm Width(mm) : 1050,1212 or 1350mm Height(mm) : 1600 Wheelbase (mm) : 1150 mm Min Curve radius (m) : 7 m Wheel diameter (mm) : Φ680mm Controller : Resistance or IGBT Braking method : Mechanical or Hydraulic Brake |
Packaging & Delivery
| Packaging: | Naked |
|---|---|
| Delivery/Lead Time: | In 15 days after payment |
| Production Capacity: | 1000 sets per year |
Product Description
The model has two kinds of working rated voltage:250v and 550V. It applies primary driving way, speed control of IGBT chopping wave type or resistor type or VF type. Main fetures include:short wheel base, high stiffness of vehicle body, and good shockproof performance. The braking type is mechanical or electric braking. Both mechanical braking and electric brking have safe and reliable effect.
Adhesive / total weight (t) : 6 ton
Track gauge (mm) : 500.600,762 or 900
Traction (KN) : 11.94kN
Max. Traction (KN) : 14.7kN
Speed(km/h) : 10km/h
Voltage : 250V or 550V
Power (KW) : 18kw *2
Dimensions Length(mm) : 4430mm
Width(mm) : 1050,1212 or 1350mm
Height(mm) : 1600
Wheelbase (mm) : 1150 mm
Min Curve radius (m) : 7 m
Wheel diameter (mm) : Φ680mm
Controller : Resistance or IGBT
Braking method : Mechanical or Hydraulic Brake
|
