5086 aluminum round bar

Otalum was founded in 1984 and after 36 years' development, Otalum has become a professional aluminum profile company for architectural systems and industrial applications.

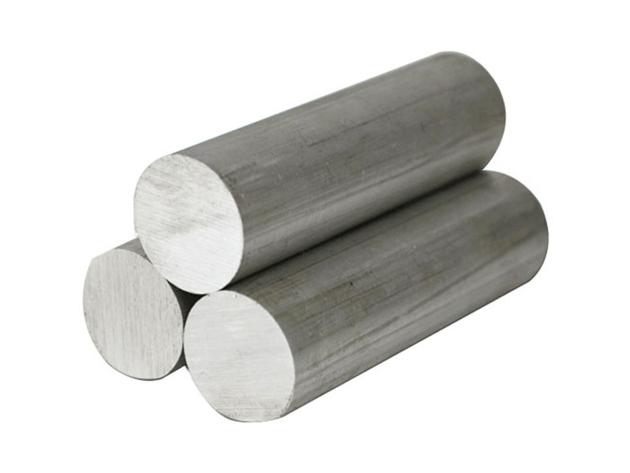

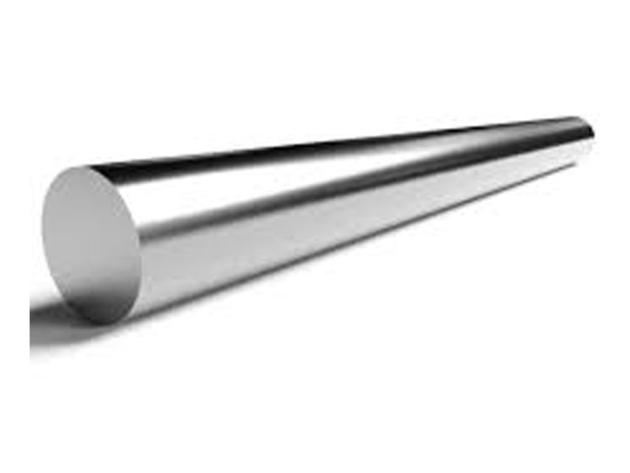

Aluminium alloy round bar is frequently used in the transportation, construction and aviation industries due to its excellent strength to weight ratio.

In Otalum, we offer a wide range of 6mm aluminium round bar with a variety of alloys, sizes and finishes. Our solid aluminum round bar can also be cut to a specific size if the existing products cannot meet your requirement.

Moreover, just like the customization services Otalum provides for all the other aluminum extrusions profiles, precise cutting to length and other processing services of aluminium hollow/solid round bars are also available with the fastest lead time.

Types of Aluminum Round Bars
5086 aluminum round bar
3003 aluminum round bar
2618 aluminum round bar
2219 aluminum round bar
2024 t4 aluminum round bar
1100 aluminum round bar

Features of Aluminum Round Bars
Alloy Standard Surface Treatment Further Process Certificate
6005 T5/T6, 6060 T5/T6, 6061 T4/T6, 6063 T5/T6, 6463 T5/T6, 6082 T5/T6, etc. GB 5237-2008, JISH, AAMA, GB, BS, En Mill finish, Powder Coating, Anodizing, Wooden grain, Electrophoresis, PVDF Painting, Sanding blasting, Polishing, etc. Drilling, Bending, Welding, Precise cutting, Punching, Fabrication of finished products, etc.  CE, DNV, TUV, ISO9001

Specifications of Aluminum Round Bars
Φ=diameter, mm
Weight(kg/m)
Item Φ(mm) Weight(kg/m)
RW1913B 4.75 0.049
JED-001C 4.95 0.051
OS-SD005 6.35 0.086
ZY-236-CHB0500 6.35 0.086
CO-3P 7.94 0.135
70047KMB 9.53 0.192
ARC079 10 0.213
CO-4P 11.11 0.262
OS-SD003 12.7 0.343
RD15 15 0.487
OS-SD004 15.88 0.535
ZYW0835 16 0.543
DT030 17.48 0.648
OS-SD001 19.05 0.77
SRR20 20 0.848
SRR23 23 1.121
SRR24 24 1.22
SRR25.4 25.4 1.369
SRR28 28 1.663
TC122 31.75 2.138
SRR32 32 2.171
ZY-044-026 34 2.452
ZY-116-018 36 2.749
RD42 42 3.78
RD050 50 5.3
CO-7P 50.8 5.473
SRR57 57 6.89
ROD60 60 7.661
RD63.5 63.5 8.65
RD0065 65 8.959
SRR70 70 10.39
RD0072 72 10.99
CF-ROD80 80 13.623
SRR83 83 14.61

Aluminum Round Bar Casting Process

Smelting and casting process includes smelting, purification, impurity removal, degassing, slag removal and casting. The main process is:

(1) Composition: According to the specific alloy grades to be produced, calculate the addition amount of various alloy components, and reasonably match various raw materials.

(2) Smelting: The prepared raw materials are smelted in a smelting furnace according to the process requirements, and the slag and gas in the melt are effectively removed through degassing and slagging refining methods.

(3) Casting: Under certain casting process conditions, the aluminum liquid is cooled and cast into various specifications of round casting rods through the deep well casting system.

START NOW
When ordering, pls specify alloy, temper, length, quantity, surface finish, end-use and any special instructions regarding tolerance, delivery, packing and certification. It couldn’t be better if you can share with us your designed drawings. If you have any questions, pls contact us without hesitation. Thanks.
