5 bbl 7bbl Beer Brewing Equipment Brewhouse factory supply cost
| Price: | US$ 48000 / Set |
|---|---|
| Minimum Order: | 1 |
| Payment Terms: | T/T |
| Port of Export: | Qingdao |
Product Details
| Model No.: | 5BBL 7BBL | Brand Name: | TEKBREW |
|---|
| Certification: | |
|---|---|
| Specification: |
Brief Introduction of Tek Beer Brewing Equipment
1. Tek beer equipment is used for Bar, Brewpub, Restaurant, Microbrewery and small Craft Beer Brewing company, Capacity from 50L to 20000L. 2. The beer brewing system is complete new, unused and high quality configurations. 3. The tank is completely made of SUS304, 316 or red copper as requirement. 4. 100% TIG welding with pure argon gas shield. 5. Interior Finish: 0.4~0.6μm/Mirror Polishing. 6. The brewhouse heating can be designed as Steam, Electric, Gas direct fire, Baine Marie accordingly. 7.The fermentor is cylinder conical tank type with Dimple cooling jackets 8. Electrcial controller system can be customized to CE/UL/CSA standards |
Packaging & Delivery
| Packaging: | export package |
|---|---|
| Delivery/Lead Time: | 50 days |
| Production Capacity: | 100sets |
Product Description

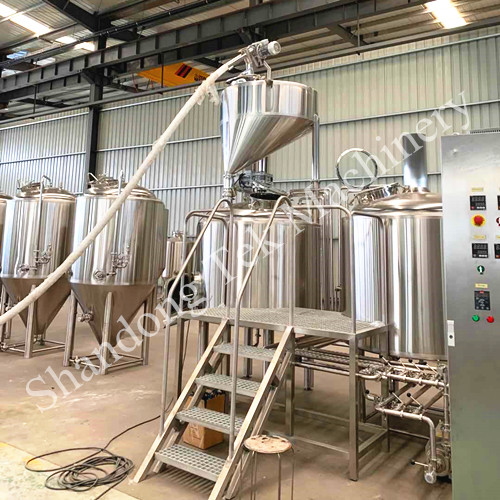

5BBL/5 Barrel Small Brewing System mainly including:
Malt Milling System
Brewhouse System
Fermentation System
Cooling System
Controlling System
And Auxiliary Equipment
Specifications
System Equipments Specifications Quantity
Miller Stainless Steel Malt Miller 300Kg/H 1
Brewhouse Mash/Lauter Tun 5BBL 1
Brew kettle and whirlpool 5BBL 1
Hot Liquid Tank 5BBL/10BBL 1
Plate Heat Exchanger 6M2 1
Wort Pump 3T/H 1
HLT Pump 3T/H 1
Brewhouse Pipeline and Valves
1
Work Platform
1
Fermentor
Unitanks
Fermenters 5BBL/10BBL 1-30
Brite Tanks 5BBL/10BBL 1-30
Yeast Tank 30L 1
Wort oxygenator
1
Cooling Glycol Water Tank 1000L 1
Chiller 5Hp 1
Glycol Water Pump 3T/H 1
CIP Alkali tank 100L 1
Sterilization tank 100L 1
CIP Pump 3T/H 1
Controller Control box
1
Spare parts Including pipes, valves, gauges….
Details as Followings
Malt Miller
Type: double roller, alloy roller
Rollers distance adjustable
Stainless Steel Frame
Motor: CE/UL Listed
Optional:Conveyor

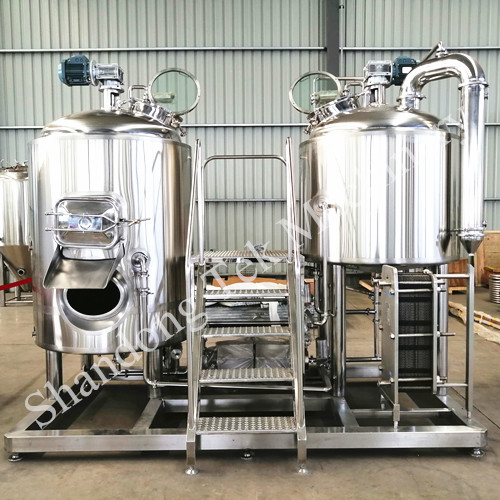

Beer Brewhouse
Vessels:2/3/4/5 Vessels
Regular: MLT+BKW+HLT.
Mash/Brew Kettle +Lauter & Whirlpool Tank.
Others: Mash Tun, Lauter Tank, Brew Kettle, Whirlpool Tank, HLT, CLT Configurations
Heating Method:
Steam Heating/Electric Heating/ Direct fire/Baine Marie/RIMS/HERMS
Specifications:
With 30% Total Volume
Dome top and cone bottom; bottom cone 160 degree
Interior Shell: SUS304;Exterior Shell: SUS304
Insulation: PU/Rockwool
100% TIG welding with pure argon gas shield
Interior Finish: 0.4~0.6μm/ Mirror Polishing
Top mounted manhole
360® CIP spraying ball
Thermowell with high accuracy temperature sensor PT100
MLT with agitator with motor reducer, CE/UL Listed
MLT with side manhole for spent grains
MLT with easy clean and detachable sparging arm
MLT with easy clean and detachable false bottom
BKW with tangential inlet for whirlpool function
Plate Heat Exchanger
2 stages for Glycol water and City water
SUS 304 Plates and frame
Wort and HLT Pumps: CE/UL Listed
Oxygenator
Brewhouse pipelines and Valves
SUS 304 Working Platform
Optional:
-Grist Case
-Wort Buffer Tank
-Platform with Sink
-Flow meter
-Pneumatic Valves
-Others
|
