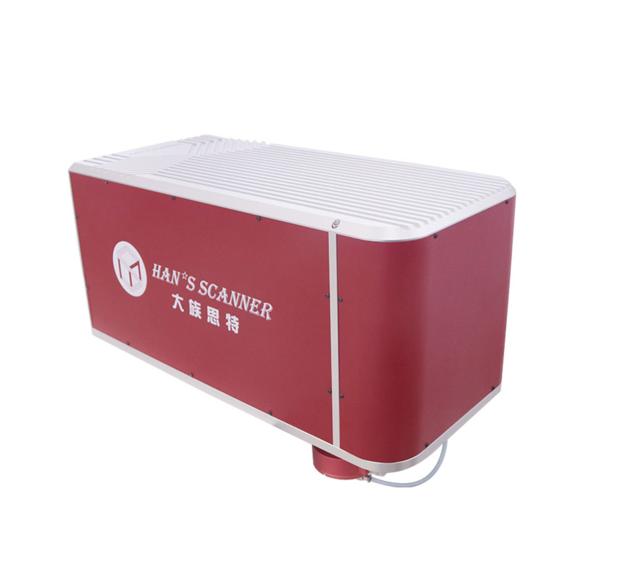

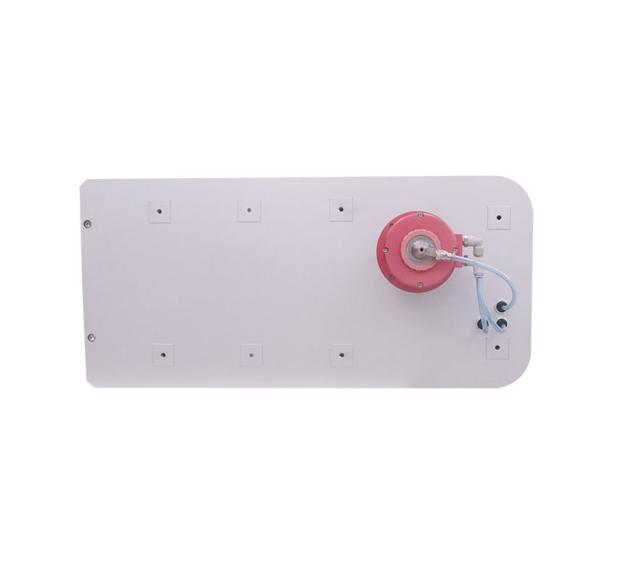

5-axis Laser Micromachining System

5-axis Laser Micromachining System
The ordinary laser drilling system can only process the taper hole, and can not achieve the standard straight hole and inverted cone hole processing. Besides the standard straight hole and the taper hole processing, the 5-axis laser micromachining system can also process the inverted cone hole, which greatly expands the laser drilling applications. With different wavelengths and super fast lasers, the thermal effect of drilling is small and the surface treatment is smooth. Only by making the processing materials unlimited, has been applied to drilling and processing in all walks of life.

Key Features Of 5-axis Laser Micromachining System

In order to ensure accurate synchronization, it is necessary to process the position data of each axis under the same processor and control clock. This design uses high speed digital chip FPGA to achieve

The positioning accuracy of the galvanometer will directly affect the machining accuracy of the equipment, and the factors affecting the positioning accuracy of the galvanometer mainly include the accuracy of the galvanometer feedback system, controller and the accuracy of correction.

The self-developed 24-bit high-precision encoder, combined with the high bandwidth driver based on PID and feedforward controller, improves the control accuracy of the system.

Adopt high-precision CNC machine tool to fix and clamp important structural parts at one time to ensure high-precision installation of galvanometer motion module.

Hans Scanner's 5-Axis Laser Micromachining PPT System Process

Hans Scanner's 5-axis Laser Micromachining System offers high-precision material processing at the micron level. Here's a breakdown of the process:

Design and Programming: The desired micro-features are first designed using CAD software. This data is then used to program the movements of the 5-axis Laser Micromachining System from Hans Scanner.

Laser and Material Setup: The appropriate laser type and power settings are chosen based on the material being processed within the Hans Scanner 5-axis Laser Micromachining System.

Precise Movement: The Laser Micromachining System's 5 axes (including the X, Y, and Z axes for spatial positioning, and 2 rotational axes for beam manipulation) work together to precisely position and manipulate the laser beam as programmed.

Material Interaction: The focused laser beam from the Hans Scanner 5-axis Laser Micromachining System interacts with the material, creating features like cuts, holes, or surface textures based on the program.

Completion and Inspection: Once complete, the micromachined part is removed from the Hans Scanner 5-axis Laser Micromachining System and inspected for accuracy and quality.

Specifications Of 5-axis Laser Micromachining System
Working field size (Diameter, Depending On Nozzle Opening) mm φ0.025mm to φ1mm
Maximum Focus Range In Z Direction mm ¯1mm
Entrance Beam Diameter (1/e2) mm 10mm
Focus Diameter In Image Field (1/e°) for M° = 1 um 25um
Maximum Angle Of Incidence 18®
Precession Frequency HZ 200-600HZ（12000-36000rpm）
Objective Focal Length mm 50mm
Repeatability um ≤0.5um=
Theoretical Resolution Of Incidence Angle urad 2urad
Dimension(L*W*H) mm 601×280×274
Weight Kg 23.5
