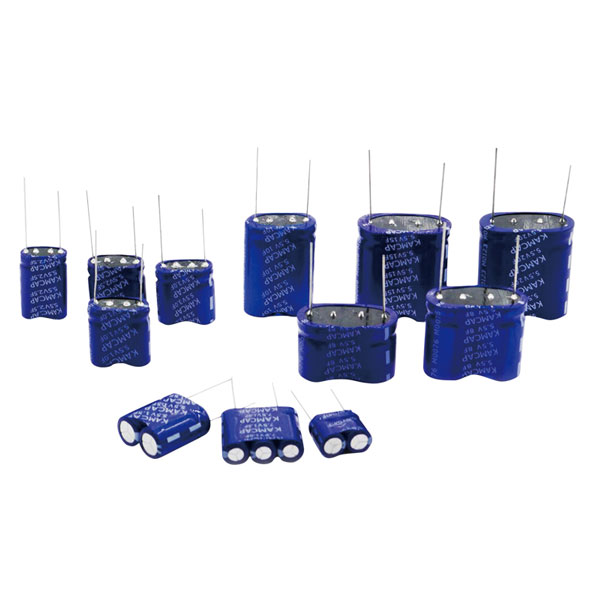

5.5V High Temperature Series

Kam also has 5.5v high temperature series ultracapacitors for sale. The following information can help you know more about this supercap capacitor series.
Performance characteristics: High temperature 85 ® C series
High temperature capacitors Typical applications: RAM, detonator, car recorder, smart meter, vacuum switch, digital camera, motor drive, clock circuit, UPS, toy, program-controlled switch, etc.
high temp capacitors specification sheet
Series name HT Combined series
Type name HT-5R5
Rated voltage
VR 5.5V
Surge voltage 5.8V
Capacity range 0.5F~10F
Operating temperature range -40 ~ +85℃
Product life Normal temperature cycle life: 25 ® C, VR to 1/2 VR cycle 1 million times, capacity attenuation ≤ 30%, internal resistance change ≤ 4 times
High temperature endurance life: 85 ® C, keep VR, 1000 hours. Capacity attenuation ≤ 30%, internal resistance change ≤ 4 times
HT -5R5(Connection plate)

Model Capacity
F ESR mΩ Product size (mm)
DC AC
1kHz Width Length Height Pitch
HT-5R5-Z334VYL06 0.33 2200 1100 8.5 16.5 15 12
HT-5R5-Z474TYL16 0.47 2200 1100 7 13.5 12 9
HT-5R5-Z474VYL06 0.47 1200 600 8.5 16.5 15 12
HT-5R5-Z105VYL07 1.00 960 480 8.5 16.5 22 12
HT-5R5-Z155VYL07 1.50 560 280 8.5 16.5 22 12
HT-5R5-Z155VYL13 1.50 560 280 10.5 20.5 22 15.3
HT-5R5-Z205VYL13 2.00 400 200 10.5 20.5 22 15.3
HT-5R5-Z205VYL09 2.00 360 180 13 25.5 23 17.8
HT-5R5-Z255TYL07 2.50 360 180 8.5 16.5 22 12
HT-5R5-Z255VYL13 2.50 360 180 10.5 20.5 22 15.3
HT-5R5-Z255UYL04 2.50 360 180 8.5 16.5 26 12
HT-5R5-Z305VYL13 3.0 300 150 10.5 20.5 22 15.3
HT-5R5-Z355VYL09 3.50 280 140 13 25.5 23 17.8
HT-5R5-Z355UYL13 3.50 280 140 10.5 20.5 22 15.3
HT-5R5-Z405VYL09 4.0 240 120 13 25.5 23 17.8
HT-5R5-Z505UYL11 5.0 240 120 10.5 20.5 27 15.3
HT-5R5-Z505VYL09 5.0 220 110 13 25.5 23 17.8
HT-5R5-Z505VYL10 5.0 220 110 13 25.5 27 17.8
HT-5R5-Z505VYL12 5.0 220 110 10.5 20.5 32 15.3
HT-5R5-Z505VYL19 5.00 220 110 13 25.5 36 17.8
HT-5R5-Z605VYL19 6.0 160 80 13 25.5 36 17.8
HT-5R5-Z905UYL10 9.0 120 60 13 25.5 27 17.8
HT-5R5-Z106VYL19 10 120 60 13 25.5 36 17.8
HT-5R5-Z106VYL21 10 120 60 16.5 32.5 28 24
HT-5R5-Z126VYL21 12 120 60 16.5 32.5 28 24

Super capacitor Typical Application

Series Application range Instance
SP, LR, HP, HT Backup power RAM、Detonator, car recorder, smart meter, vacuum switch, digital camera, motor drive, clock circuit, UPS, toy, program-controlled switch, etc.
SE, HP, HE Energy storage Water meter, electricity meter, gas meter, UPS, security equipment, computer memory, communication equipment
SE Coin type, HE Energy storage Flashlights, water meters, gas meters, taillights, small appliances, etc.
HP、LR High power support Wind power, locomotive start, ignition, electric vehicles, etc.
MK Backup power
High current operation Electrified railway, smart grid control, hybrid vehicle, wireless transmission, rail power system
