4port EPON OLT L3 with WEB GUI
| Price: | US$ 410$ / Unit |
|---|---|
| Minimum Order: | 1 |
| Payment Terms: | Paypal |
| Port of Export: | Shenzhen |
Product Details
| Model No.: | SEL1484 | Brand Name: | SMART PON |
|---|
| Certification: | |
|---|---|
| Specification: |
Service Port 8 * PON port,
8 * GE , 4*10GE SFP optical Redundancy Design Dual Voltage Regulators Power Supply AC: input100~240V 47/63Hz Power Consumption ≤45W Dimensions (Width x Depth x 440mm×44mm×260mm Height) Weight (Full-Loaded) ≤4.5kg Environmental Requirements Working temperature: -10®C~55®C Storage temperature: -40®C~70®C Relative humidity: 10%~90%, non-condensing |
Packaging & Delivery

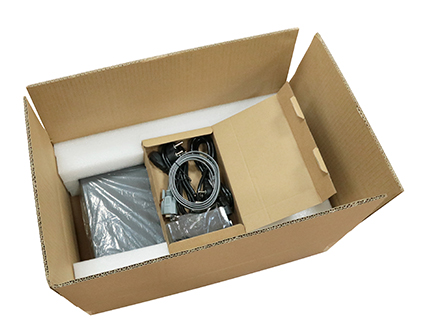

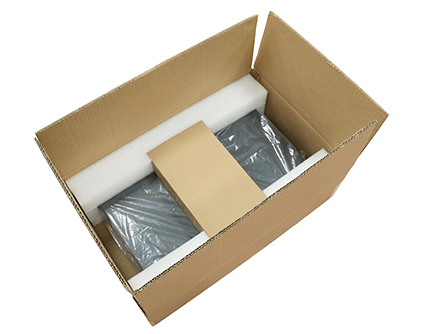

| Packaging: | 4port EPON OLT, double AC power supply |
|---|---|
| Delivery/Lead Time: | 1 |
| Production Capacity: | 100000 |
Product Description
Model Number:SEL1484
Type:FTTx Solutions
Use:FTTX
Pon Port:4*Fixed Epon Port
Uplink interface:8 * GE & 4*10G SFP+ for uplink
Device management function:EMS / WEB / CLI Network management
Weight (Full-Loaded):≤4.5kg
Max splitting ratio:1:64
Connector Type:4*SFP-1000BASE-PX20+/PX20++/PX20+++
AC Power Supply:input100~240V 47/63Hz
Power Consumption:≤45W
Warranty:1 Year
Product Overview
EPON OLT is a high integration and medium capacity cassette EPON OLT designed for operators’ access and enterprise campus network. It follows the IEEE802.3 ah technical standards and meets the EPON OLT equipment requirements of YD/T 1945-2006 Technical requirements for access network——based on Ethernet Passive Optical Network (EPON) and China telecom EPON technical requirements 3.0. EPON OLT series possesses excellent openness, large capacity, high reliability, complete software function, efficient
bandwidth utilization and Ethernet business support ability, widely applied to the operator front-end network coverage, private network construction, enterprise campus access and other access network construction.

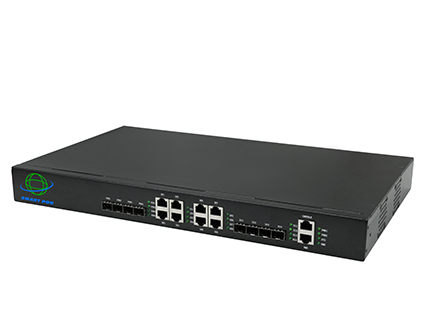

The OLT provides 8 downlink 1.25G EPON ports, 8 * GE LAN Ethernet ports and 4 *10G SFP for uplink. The height is only 1U for easy installation and space saving. It adopts the advanced technology, offering efficient EPON solution. Moreover, it saves a lot cost for operators for it can support different ONU hybrid networking.
|
