40G Ethernet/Data center 40Gb QSFP+ SR4 850nm Fiber Optic Transceiver

Product Description
Optical Transceiver.jpg40G Ethernet/Data center 40Gb QSFP+ SR4 850nm Fiber Optic Transceiver


1. Key Features

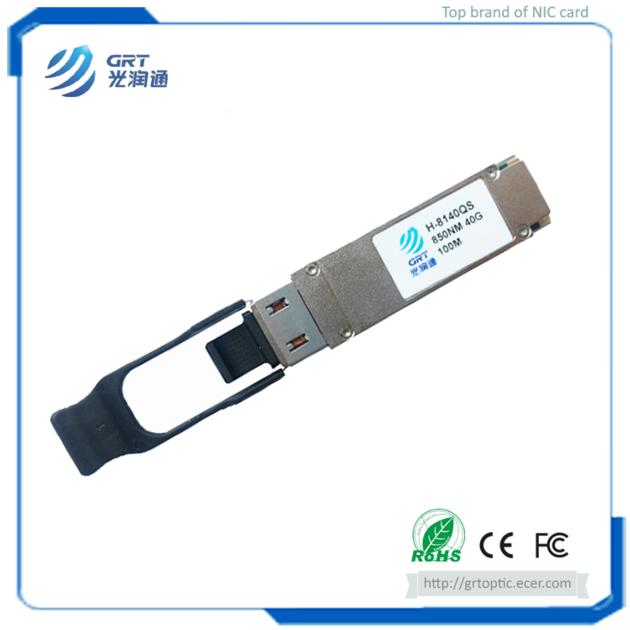

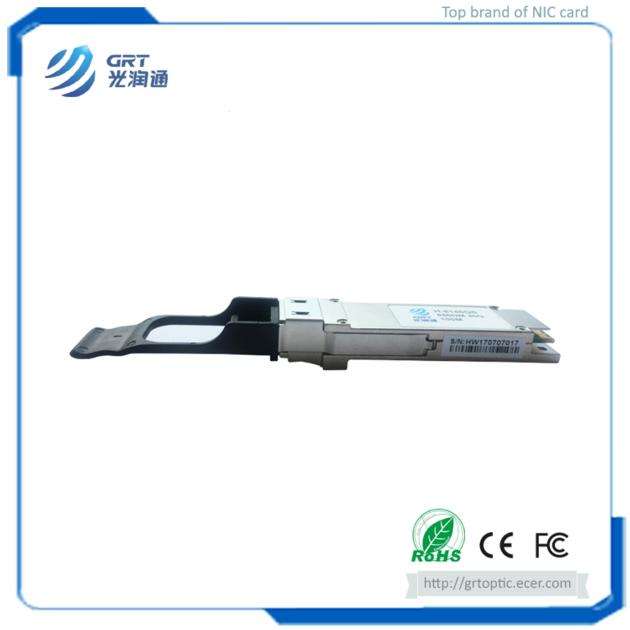

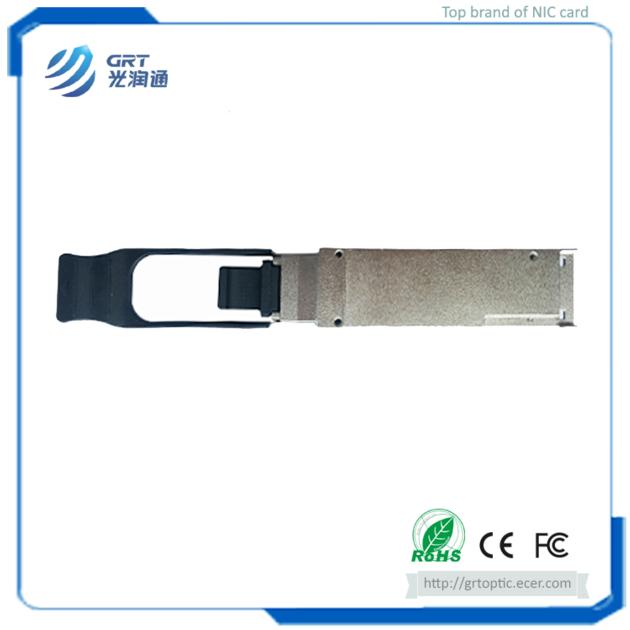

H-8140QS is a parallel 40Gbps Quad Small Form-factor Pluggable (QSFP+) optical module. It provides increased port density and total system cost savings. The QSFP+ full-duplex optical module offers 4 independent transmit and receive channels, each capable of 10Gbps operation for an aggregate data rate of 40Gbps over 100 meters of OM3 multimode fiber.
4 independent full-duplex channels
Up to 11.2Gbps data rate per channel
MTP/MPO optical connector
QSFP+ MSA compliant
Digital diagnostic capabilities
Capable of over 100m transmission on
OM3 multi-mode ribbon fiber
CML compatible electrical I/O
Single +3.3V power supply
XLPPI electric interface
Maximum power consumption 1.5W
RoHS-6 compliant


2. Application

Optical transceivers can be applied for Gigabit Ethernet, Fiber channel, SDH/SONET/ATM, switch, routers, servers, Ethernet Switch and servers, storage, SONET(OC-192)/SDH(STM64) card, high speed storage area network (SAN), high speed data channel, PDH and other network transmission systems.
NIC network cards
Switches
Routers
VPN equipment
Traffic control device
GAP
Fiber Media Converter
Firewall
Storage device
Telecommunication
Fiber Channel

Keywords: 40g optic transceiver, qsfp+ optic transceiver, qsfp+sr4 transceiver

3. Customer Ordering

For each model of optical module, there're 3 levels for choice.

Product Level
Description
Aerospace Level made by 100% imported material
Telecommunication Level 60% of material are imported
Network Level chipset imported, others are of dometic brand

4. Compatibility

All of GRT's transceiver modules are open sourced, can be coded to be fully compatible with major brands' products and devices, such as Intel, Dell, Cisco, Finisar, Arista, HP, Mellanox, Juniper, HUAWEI, H3C, etc.

For other brands' devices, please specify when ordering so that we can write corresponding codes for your easy application.


Cases Show

GRT's products have been widely used in fields like network secutity, storage,server, telecommunication, finance, railway, military, oil, customs and water conservation, etc.


Production

Based on the principle of Quality comes first, GRT holds a complete series of quality tests for all its products from material to finished product. Strict tests like adhesion test, current test, electrostatic protection, return loss test, temperature cycle aging test, data reducing, functional test,hardware test, communication test and flow test will be made before storaging and leaving factory.


5. Normal Package & Notes on application

Please keep the transceiver modules from dust, moist and oil contamination.
Try to avoid the electrostatic.
Try to avoid direct contact with sensitive areas such as connecting finger.
We can ship by DHL, EMS, FedEx, TNT, UPS, etc or other express ways upon your request.
