4-axis Large Field Processing System

4-axis Large Field Processing System

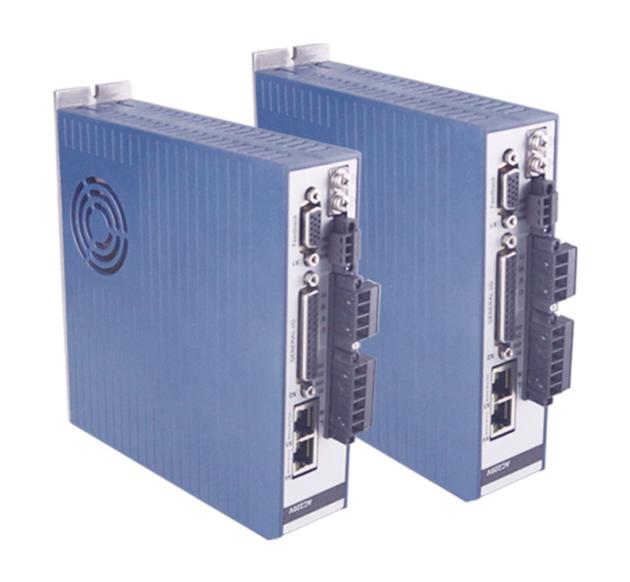

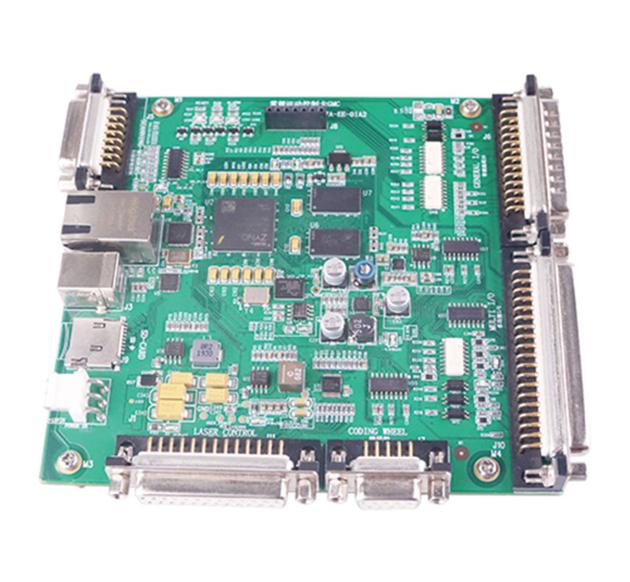

The four-axis linkage system is mainly composed of XY galvanometers, XY motion platform, platform driver, GMC control card and general marking software. It has the function of unlimited field of vision, synchronize the linear servo shaft and laser scanning galvanometer. When the high dynamic performance of the scanning galvanometer is combined with the large stroke range of the servo platform, a larger working range can be continuously processed than that of the traditional galvanometer, without the need for stitching the working area. The four-axis linkage system not only expands the working range of the laser processing system and the application range of a single optical device, but also avoids the interaction between the laser beam range and the available working range, and improves the processing quality and the production of large parts.

Key Features Of 4-axis Large Field Processing System

Main features

Easy-to-use parameter settings, easy to use for various parts

Suitable for Han's Scanner series scanning galvanometers, compatible with the other galvanometers driven by XY2-100

Only one laser control card is needed to realize real-time synchronous linkage control between the galvanometer and the platform

Can import standard format vector graph, can also be secondary development, development

language support C++, C#.

Application scenarios

Marking, cutting and engraving on a large scale

Micromachining

OLED processing

Glass and foil processing

PCB large area drilling

As one of galvanometer manufacturers, we can provide kinds of related products for sale, if you have needs, please contact us.
