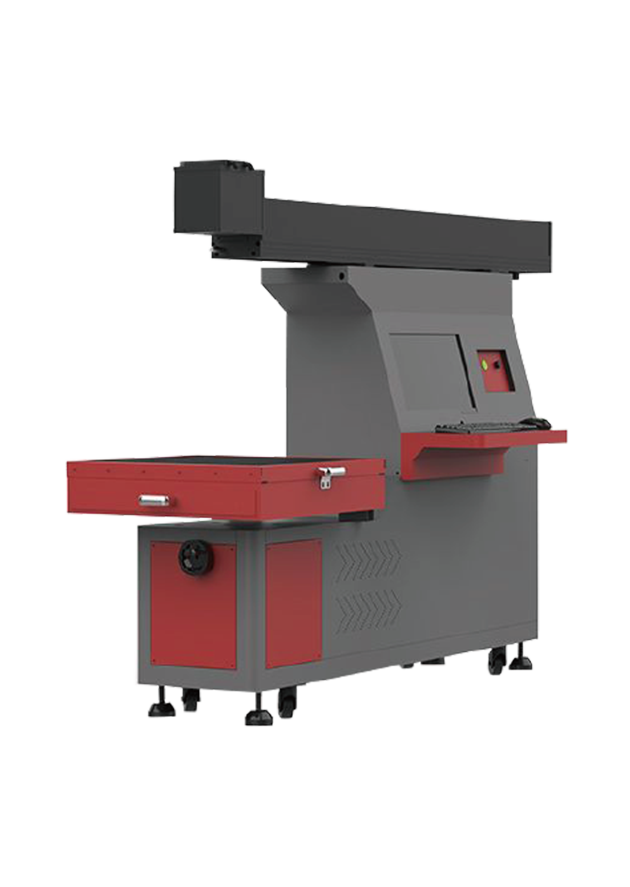

3D Dynamic CO2 Laser Marking Machine
| Price: | US$ 8000 |
|---|---|
| Minimum Order: | |
| Payment Terms: | 30% T/T payment in advance,70%T/T before shipment |
| Port of Export: |
Product Details
| Model No.: | Brand Name: |
|---|
| Certification: | |
|---|---|
| Specification: |
Model TXT-DB-CM100/150/180/280
Laser Type CO2 laser Laser Power 100W/150W/180W/280W Laser Wavelength 1064nm Marking Area 400mm/400mm/600*600mm/800*800 Marking Depth ≤1.2mm Marking Speed 8000mm/s Minimum Line Width 0.012mm Minimum Character 0.15mm Repeated Precision ¯0.003mm Beam Quality M2 <1.5 Focus Spot Diameter <0.01mm Output Power of Laser 10%~100% continuously to be adjusted System Operation Environment Windows XP /7/8/10 32/64bits L*W*H 2350*700*1450mm Weight 260kg Cooling Way: water cooling Power Requirement AC220V/110V/50Hz Communication Interface USB Machine Dimension/after package 2000*850*1360mm Optional Rotary Device, Moving Table are customized |
Packaging & Delivery
| Packaging: | |
|---|---|
| Delivery/Lead Time: | |
| Production Capacity: |
Product Description
The 3D Dynamic CO2 Laser Marking Machine is controlled by the computer, can mark on the surface of processing materials along the desired track through 10.64um laser beam’s beam expanding, focus, galvanometer’s deflection to achieve the engraving effect.The CO2 laser marker can engrave on all non-metal maeterials like jeans,leateher,plastic,wood,acrylic,papaer.... which has following characters:
1.Large marking area, high speed, high precision , good stability ; fully closed optical path;high stability;powerful system,suitable for continuous processing of large quantities and multiple varieties.
2. The line width can been reached under 0.4mm,average level in laser field is 0.6mm.
3.The machine will adopts CO2 glasses tube or metal Radio Frequency tube according to customer’s request,
4.The CO2 non-metal laser marking machine is cheap which can help buyer win market as soon.
5.The machine is high speed(0-8000mm/s) ,using famous Sino/scanlap galvanometer head.
6.Max marking area is customerized up to: 400*400mm/600*600mm/800*800mm.
|
