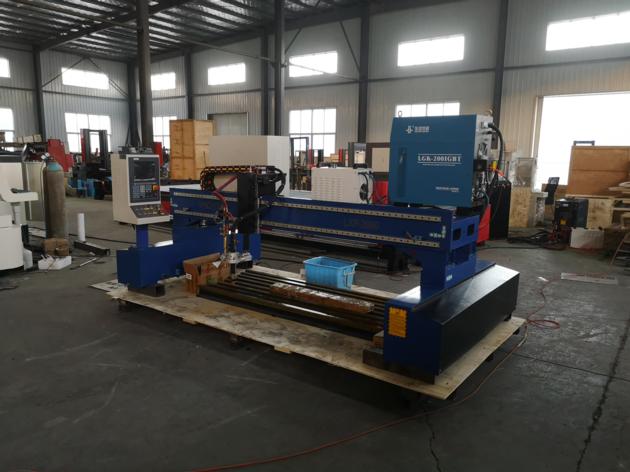

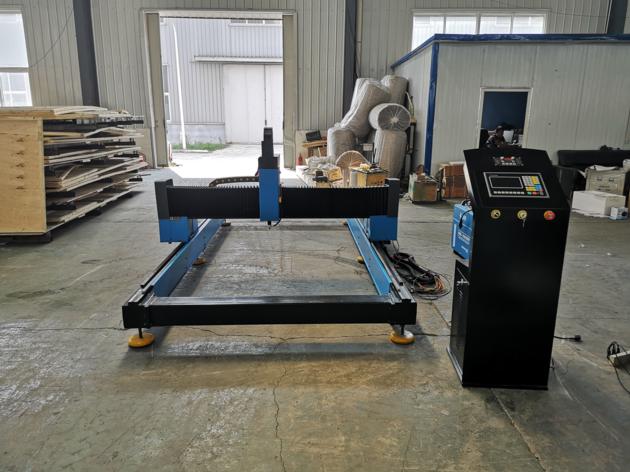

3000*6000MM smokeless Hypertherm Gantry CNC Plasma Cutter for Sheet Metal Manufacturing

This smokeless Hypertherm Gantry CNC Plasma Cutter is mainly used for cutting the Steel/Iron sheet automatically. It is equipped with a special plasma cutting smoke treatment device, which effectively improves the working environment of the plasma cutting machine workshop. This Gantry Plasma Cutter is widely used for steel structure, shipbuilding, bridge and heavy machine industries.
Cutting material: low carbon steel, stainless steel and non-ferrous metal, etc. machine can be designed according to the different needs of users.

Features of smokeless Hypertherm Gantry CNC Plasma Cutter:
1. Beam with strong structural design, the structure has good rigidity, light weight, exercise inerti.
2. Gantry-type structure, Y-axis synchronous dual-motor drive and XYZ axis with circular rail (optional formula-type linear guide), steady transmission, and high accuracy.
3. Support WENTAI, BEIHANG HAIER, ARTCAM, Type3 software such as the standard G code path generated file can also be read by software conversion software such ad AUTOCAD generated DXF formats.
4. U disk exchange control system processing files, easy to operate. 5. Plasma torch power supply and supporting all famous brands such as American Hypertherm, a number of national patents by the manufacturers.

Parameters of smokeless Hypertherm Gantry CNC Plasma Cutter:
Model RB3060
Power source 220V,380V/50HZ
Working area 3000*6000mm
Cutting mode Plasma only, flame only, plasma and flame
Cutting speed 0-4000mm per minute
Plasma cut thickness Depend on current of plasma power source
Flame cut thickness 10-200mm
Cutting length 6000-12000mm (Can be as required)
Number of Control Axes 3
Height range 0-500mm
Height adjuster mode Automatic(include 24DC geared motor)
Driving mode Stepper or servo mode, dual driving
Operation system FANGLING , STARFIRE, START, Hypertherm
Language version English, Chinese Russian, Spanish, French, Japanese, Czech, Slovak
File transmission USB transmission
