3 Way Sanitary Ball Valve AISI 316L

3 Way Sanitary Ball Valves come standard with a fully encapsulated or cavity filled seat– this is not an option since the fully encapsulated Teflon seat reduces the threat of contamination for critical processes or products. 3 Way Ball Valves require no special tools in the field to work on the valve, which is a plus when it comes to easy maintenance and low installation costs. We have each valve capped and bagged so you have no dings on the ends as well as permanently etching the size, alloy and heat number for full trace ability.
Stainless steel sanitary 3-way ball valves are used in a wide variety of high-pressure applications. A full, unrestricted flow allows no product restrictions through the valve, allowing easy diversion. We offer three way ball valves made of T316L (CF3M) stainless steel with PTFE seats that are easily removed. Clamp and weld ends are standard. Other connections are available upon request. Ball valves meet 3A requirements. L-Port is standard, but T-Port is available upon request. We stock a large inventory of high-quality stainless sanitary 3-way ball valves.

Key Feature:

Available in sizes 1/2″ – 4″
Body & end caps quality investment casting
Available in stainless steel AISI 304, AISI 316L
ISO 5211 direct mounting pad
Adjustable stem packing
Blow-out proof stem design
Available in L/ T/ X/ I-port
100% air tested under water at 80-100 psi
Temperature range -29 ®C to 120 ®C
End type: T-Clamp, Tube Weld, Extended Tube Weld

Please contact our sales for other materials and details.

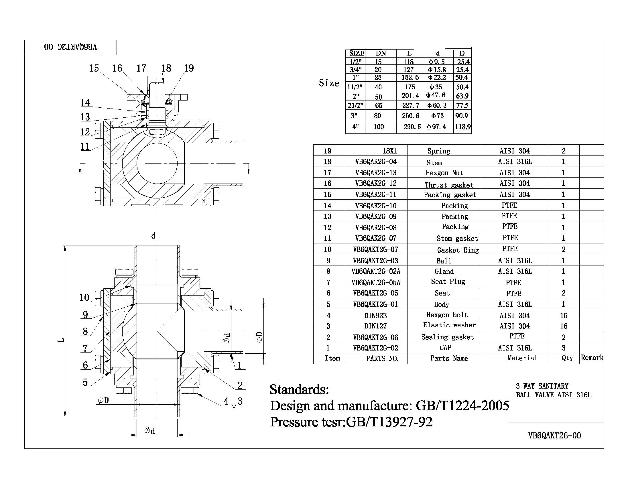

Date Sheet:
3 Way Sanitary Ball Valve AISI 316L
