20KA AC Power SPD

SPD for AC power; 220VAC, TN system, Single phase; In(8/20us): 10kA/phase, Imax: 20kA/phase; hot-pluggable; fault indication.

Features & Advantages of 20KA SPD
Status indication:

Green: OK

Red: Failed

Lightning protection device modules can be replaced online.

Remote alarm output is optional, named with "F".

It is normally installed at the boundary of LPZ1 and LPZ2 or subsequent LPZs.

Parameter of 20KA AC Power SPD
T2-20/3P T2-20/4P T2-20/1P+1 T2-20/3P+1
T2-20/2P T2-20/3PF T2-20/4PF T2-20/1P+1F T2-20/3P+1F
T2-20/2PF
Max. continuous operating voltage Uc 320VAC 320VAC 320VAC 320VAC 320VAC
Nominal discharge current In(8/20°±²³´µs) 10kA 10kA 10kA 10kA 10kA
Max. discharge current Imax(8/20°±²³´µs) 20kA 20kA 20kA 20kA 20kA
Voltage protection level Up 1.2kV 1.2kV 1.2kV 1.2kV 1.2kV
Recommended backup fuse 40A gG 40A gG 40A gG 40A gG 40A gG
Recommended grounding cable 4~35mm2 4~35mm2 4~35mm2 4~35mm2 4~35mm2
Response time 25ns 25ns 25ns 25ns 25ns
Residual current IPE <10°±²³´µA <10°±²³´µA <10°±²³´µA <10°±²³´µA <10°±²³´µA
Remote alarm output 250VAC/0.5A;24VDC/0.5A 250VAC/0.5A;24VDC/0.5A 250VAC/0.5A;24VDC/0.5A 250VAC/0.5A;24VDC/0.5A 250VAC/0.5A;24VDC/0.5A
Housing protection grade(IEC60529) IP 20 IP 20 IP 20 IP 20 IP 20
Housing material/inflammability rating(UL94) PA66/V0 PA66/V0 PA66/V0 PA66/V0 PA66/V0
Testing standard IEC 61643-11 IEC 61643-11 IEC 61643-11 IEC 61643-11 IEC 61643-11

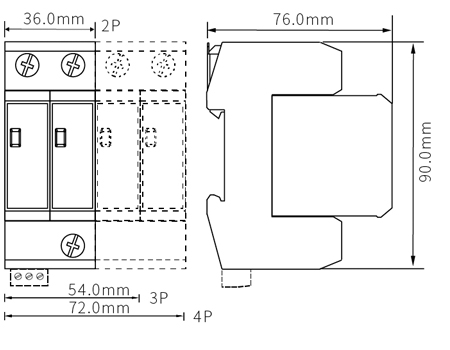

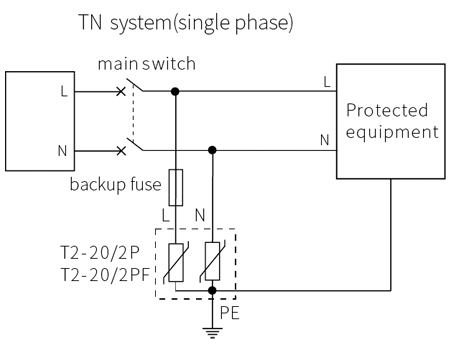

Suitable for power supply system TN system(single phase) IT,TN-C system(three phase) TN-S system(three phase) IT,TN-C system(single phase) TT system(three phase)
