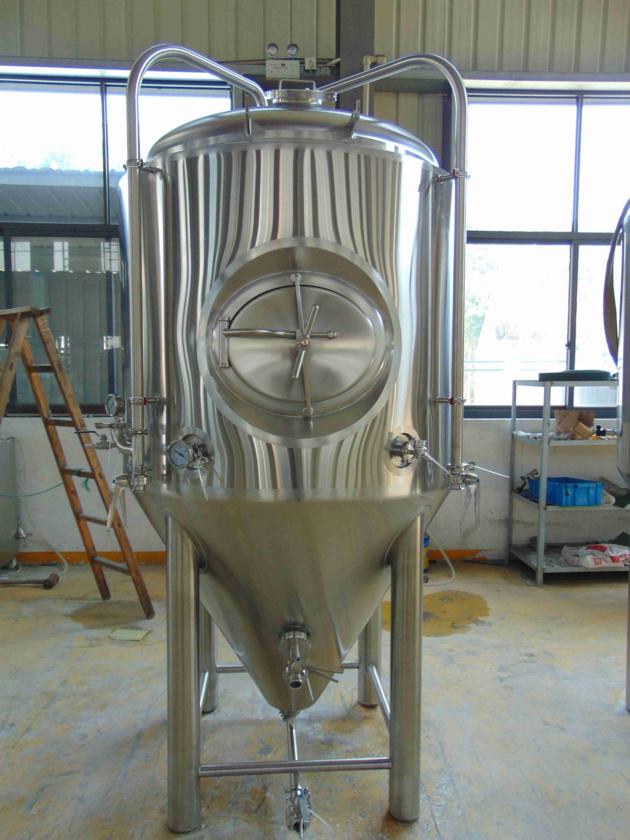

2000L Fermentation Tank/Unitank

♦ Interior Finish: Sanitary 2B finish, Pickled and Passivated; (8K Mirror finish optional)
♦ Exterior Finish: Oil brushed finish（2B, 8K Mirror finish optional)
♦ Interior full polished to 0.2~0.4 μm without dead corner
♦ Insulation: TH=80mm with low thermal conductivity PU
♦ Cooling: 35% Glycol liquid -5℃
♦ Cooling Jacket: Dimple plate on bottom and side wall, welded without over burning
♦ Jacket test by water and gas, 5bar/75psi for 1hour, 3.5bar/52psi for 48 hours
♦ Jacket Working Pressure: < 2bar/30psi
♦ Tank leakage test by water and gas, 4bar/60psi for 1hour, 2.5bar/37.5psi for 48 hours
♦ Tank Working Pressure: ≦ 2bar/30psi
♦ Dished top full polished
♦ Conical bottom with 60® cone (customizable)
♦ Sanitary side mounted oval manhole with pressured door (Top mounted available)
♦ Top mounted double clamp 360® rotary CIP spraying ball and port, 1pc
♦ CIP arm with four-way connection and butterfly valve
♦ CO2 blow-off arm with butterfly valve (Removable)
♦ Mechanical safe valve PVRV 2bar/30psi on top (1bar/15psi available)
♦ Full sanitary sampling valve with EPDM seal
♦ Hydraulic shock pressure gauge on CIP arm （Diaphram type for optional)
♦ Horizontal mounted rotating racking arm and port in cone with butterfly valve
♦ Discharge arm with butterfly valve, Removable and easy to clean
♦ Sanitary welded thermowell for high accuracy temperature sensor 1pc
♦ Dry hopping port 4'' with solid end cap (Hops pitching tank for optional)
♦ Glycol water in/out port on side wall, Thick wall pipe thread (Top or bottom design available)
♦ Glycol water in/out port on cone, Thick wall pipe thread (Top or bottom design available)
♦ 4pcs completely SUS304 legs with braces
♦ 4 sets heavy duty foot pad with up-down and slop adjustable
♦ Complete valves, fittings and all parts, Tri clamp/DIN Union available
