1GE PORT FTTH XPON ONU
| Price: | US$ 10.50$ |
|---|---|
| Minimum Order: | 1 |
| Payment Terms: | Paypal |
| Port of Export: | Shenzhen |
Product Details
| Model No.: | STR5001X | Brand Name: | SMART PON |
|---|
| Certification: | |
|---|---|
| Specification: |
Technical item
Details PON Interface 1 GPON BOB （Class B+/Class C+） Receiving sensitivity: ≤-27dBm/≤-29dBm Transmitting optical power:+0.5~+5dBm/+2~+7dBm Transmission distance: 20KM Wavelength TX: 1310nm, RX: 1490nm Optical Interface SC/UPC Connector Chip Spec RTL9601D ,CPU 300MHz,DDR2 32MB Flash: SPI Nor Flash 16MB LAN Interface 1x 10/100/1000Mbps auto adaptive Ethernet interface. RJ45 connector LED 4 LED, For Status of PWR、LOS、PON、LINK/ACT Push-Button 2,For Function of Power on/off, Reset Operating Condition Temperature: 0℃~+50℃ Humidity: 10%～90%（non-condensing） Storing Condition Temperature: -30℃~+60℃ Humidity: 10%~90%（non-condensing） Power Supply: DC 12V/0.5A Power Consumption: <3W Dimension: 120mmx78mmx30mm(L×W×H) Net Weight: 0.13Kg |
Packaging & Delivery

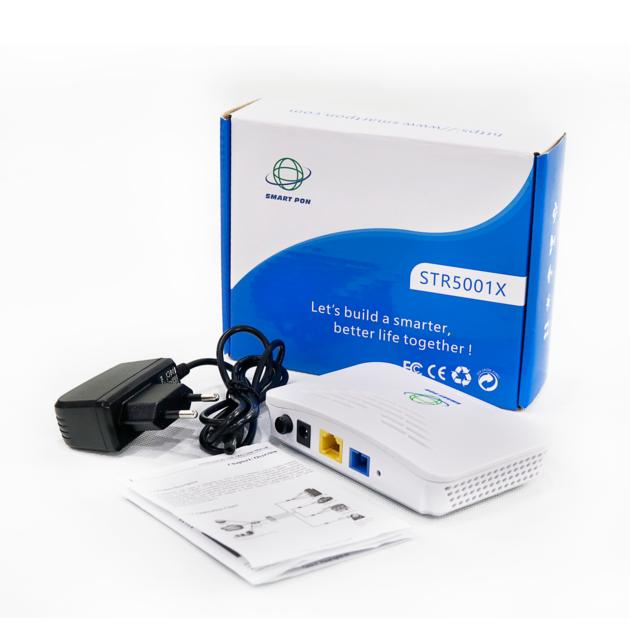

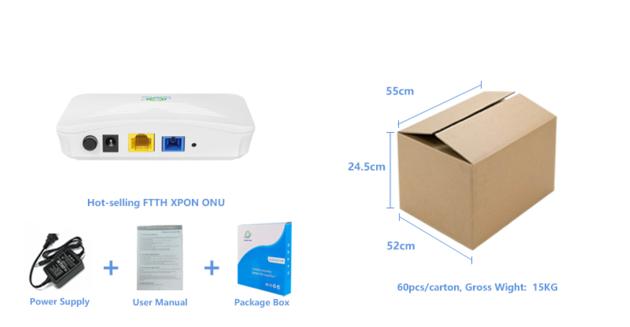

| Packaging: | ONU, Power Adapter |
|---|---|
| Delivery/Lead Time: | 1 |
| Production Capacity: | 100000 |

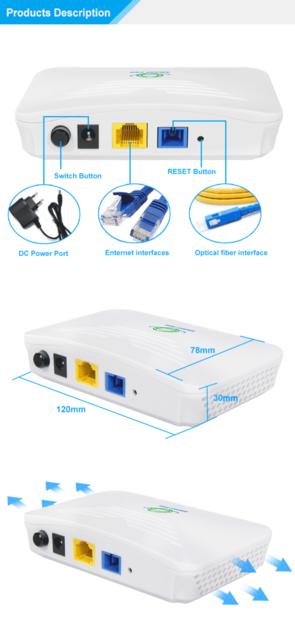

Product Description
1. Overview
● STR5001X is designed as HGU (Home Gateway Unit) in deferent FTTH solutions,The carrier-class FTTH application provides data service access.
● STR5001X is based on mature and stable, cost-effective XPON technology. Itcan switch automatically with EPON and GPON mode when it access to the EPON OLT or GPON OLT.
● STR5001X adopts high reliability, easy management, configuration flexibility and good quality of service (QoS) guarantees to meet the technical performance of the module of China Telecom EPON CTC3.0 and GPON Standard of ITU-TG.984.X
2. Functional Feature
● Support EPON/GPON mode and switch mode automatically
● Support ONU auto-discovery/Link detection/remote upgrade of software
● Support Route PPPoE/IPoE/Static IP and Bridge mode
● Support IPv4/IPv6 Dual mode
● Support Firewall function and IGMP multicast feature
● Support LAN IP and DHCP Server configuration
● Support Port Forwarding and Loop-Detect
● Support TR069 Remote Configuration and maintenance
● Specialized design for system breakdown prevention to maintain stable system
3.Application
● Typical Solution：FTTO(Office)、 FTTB(Building)、FTTH(Home)
● Typical Business：INTERNET、IPTV etc
|
