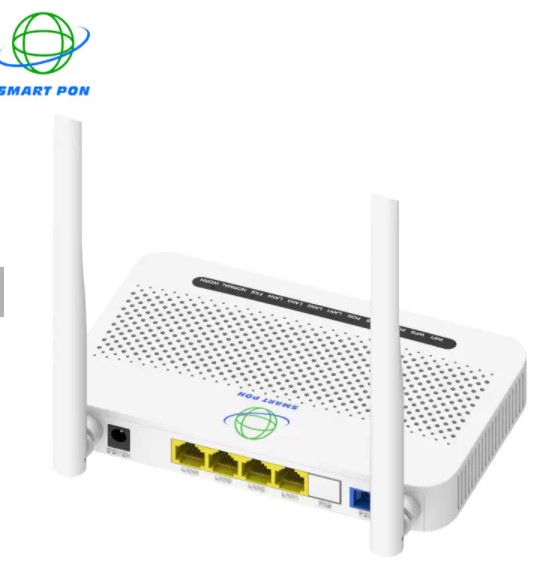

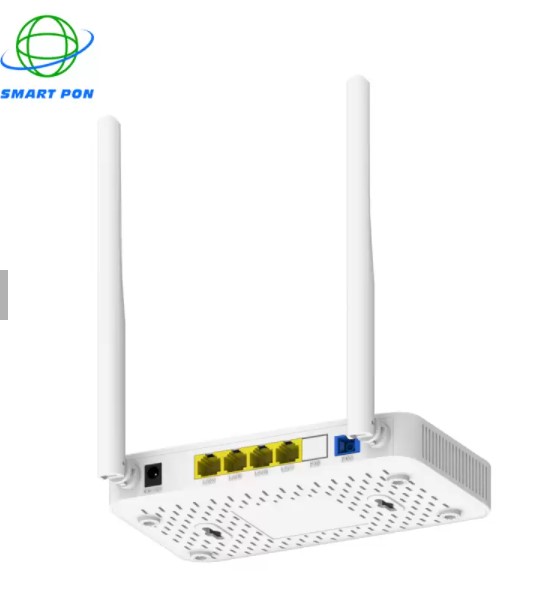

1GE+3FE+WIFI FTTH XPON ONU
| Price: | US$ 20$ / Unit |
|---|---|
| Minimum Order: | 1 |
| Payment Terms: | Paypal |
| Port of Export: | Shenzhen |
Product Details
| Model No.: | SUR3105XR | Brand Name: | SMART PON |
|---|
| Certification: | |
|---|---|
| Specification: |
Type: FTTx Solutions
Use: FTTH Application: FTTH FTTB FTTX Network Transmission Distance:20km PON Interface:1 GPON BOB (Class B+/Class C+) LAN Interface:1 x 10/100/1000Mbps(GE) and 1 x 10/100Mbps(FE) Wavelength:Tx1310nm, Rx1490nm DC power supply:+12V,1A Power Consumption:≤6W Optical interface:SC/UPC Connector Dimension:180mmx107mmx28mm(LxWxH) Warranty:1 Year Technical item Details PON Interface 1 GPON BOB （Class B+/Class C+） Receiving sensitivity: ≤-27dBm/≤-29dBm Transmitting optical power: +0.5~+5dBm/+2~+7dBm Transmission distance: 20KM Wavelength TX: 1310nm, RX: 1490nm Optical Interface SC/UPC Connector Design Scheme RTL9603C+RTL8192FR BOB(i7525BN) Chip Spec CPU 950MHz,DDR2 128MB Flash SPI Nor Flash 16MB LAN Interface 1 x 10/100/1000Mbps(GE) and 3 x 10/100Mbps(FE) auto adaptive Ethernet interfaces. Full/Half, RJ45 connector Wireless Compliant with IEEE802.11b/g/n, Operating frequency: 2.400-2.4835GHz support MIMO, rate up to 300Mbps, 2T2R,2 external antenna 5dBi, Support: multiple SSID Channel: Auto Modulation type: DSSS, CCK and OFDM Encoding scheme: BPSK, QPSK, 16QAM and 64QAM LED 9 LED, For Status of WIFI,WPS,PWR,LOS,PON,LAN1~LAN4 Push-Button 3,For Function of Reset,WLAN,WPS Operating Condition Temperature: 0℃~+50℃ Humidity: 10%~90%(non-condensing) Storing Condition Temperature: -30℃~+60℃ Humidity: 10%~90%(non-condensing) Power Supply DC 12V/1A Power Consumption ≤6W Dimension 180mm×107mm×28mm(L×W×H) Net Weight: 0.2Kg |
Packaging & Delivery

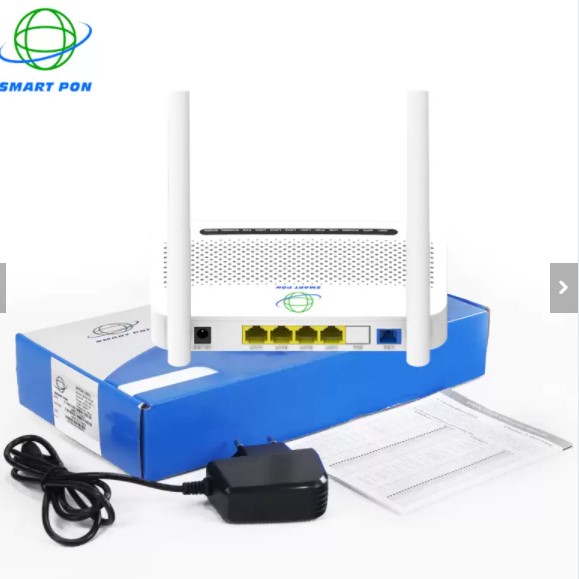

| Packaging: | ONU, Power Adapter |
|---|---|
| Delivery/Lead Time: | 1 |
| Production Capacity: | 100000 |
Product Description
1. Overview
* SUR3105XR is designed as HGU (Home Gateway Unit) in different FTTH solutions. The carrier-class FTTH application provides different services access.
* SUR3105XR is based on mature and stable, cost-effective XPON technology.
* SUR3105XR adopts high reliability, easy management, configuration flexibility and good quality of service guarantees to meet the technical performance of EPON Standard of China Telecom CTC3.0 and GPON Standard of ITU-TG.984.X
2.Functional Feature
* Support EPON/GPON mode and switch mode automatically
* Support Route mode for PPPoE/IPoE/Static IP and Bridge mode
* Support IPv4and IPv6 Dual mode
* Support 2.4G WIFIand 2*2 MIMO
* Support LAN IP and DHCP Server configuration
* Support Port Mappingand Loop-Detect
* Support Firewall function andACL function
* Support IGMP Snooping/Proxy multicast feature
* Support TR069 remote configuration and maintenance
* Specialized design for system breakdown prevention to maintain stable system
3.Application

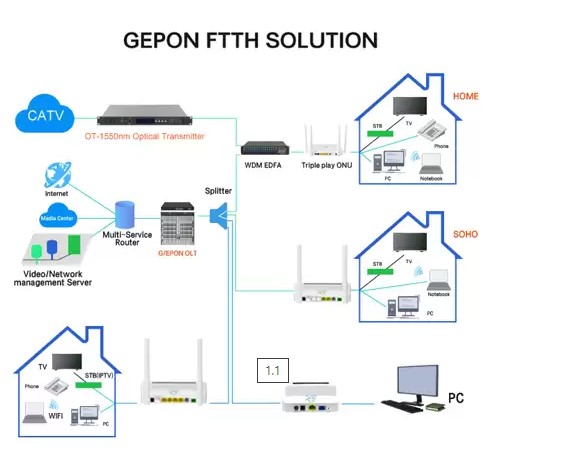

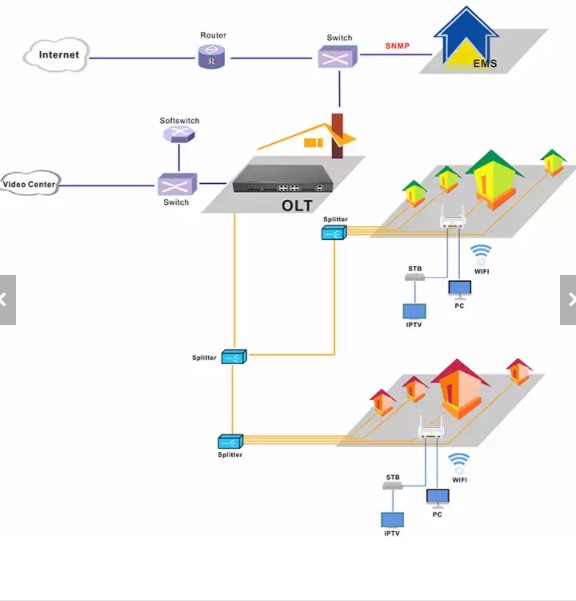

● Typical Solution：FTTO(Office)、 FTTB(Building)、FTTH(Home)
● Typical Business：INTERNET、IPTV etc
|
