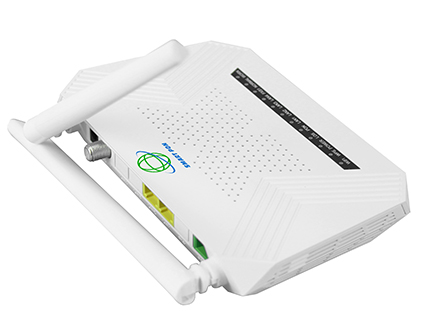

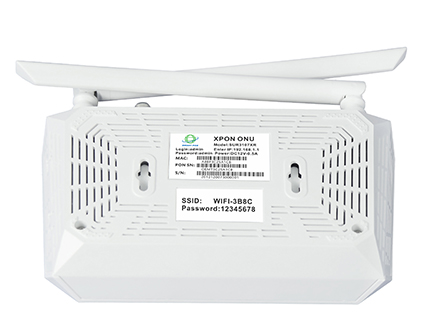

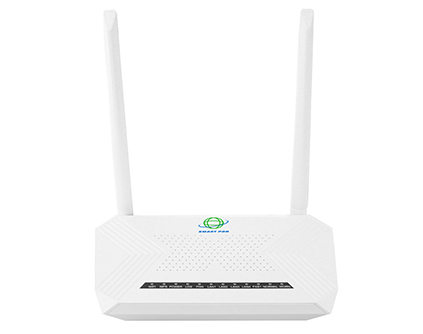

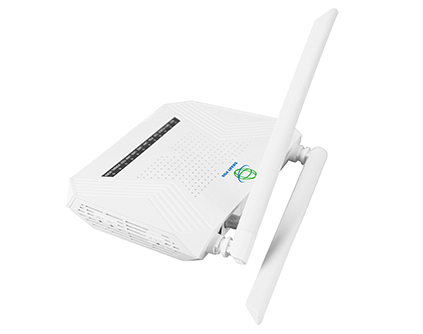

1GE+1FE+WIFI+CATV FTTH XPON ONU
| Price: | US$ 25.50$ / Unit |
|---|---|
| Minimum Order: | 1 |
| Payment Terms: | Paypal |
| Port of Export: | Shenzhen |
Product Details
| Model No.: | SUR3107XR | Brand Name: | SMART PON |
|---|
| Certification: | |
|---|---|
| Specification: |
Technical item
Details PON Interface 1 GPON BOB （Class B+/Class C+） Receiving sensitivity: ≤-27dBm/≤-29dBm Transmitting optical power:+0.5~+5dBm/+2~+7dBm Transmission distance: 20KM Wavelength TX: 1310nm, RX: 1490nm Optical Interface SC/UPC Connector Chip Spec RTL9601D ,CPU 300MHz,DDR2 32MB Flash: SPI Nor Flash 16MB LAN Interface 1x 10/100/1000Mbps auto adaptive Ethernet interface. RJ45 connector LED 4 LED, For Status of PWR、LOS、PON、LINK/ACT Push-Button 2,For Function of Power on/off,Reset Operating Condition Temperature: 0℃~+50℃ Humidity: 10%～90%（non-condensing） Storing Condition Temperature: -30℃~+60℃ Humidity: 10%~90%（non-condensing） Power Supply: DC 12V/0.5A Power Consumption: <3W Dimension: 120mmx78mmx30mm(L×W×H) Net Weight: 0.13Kg |
Packaging & Delivery

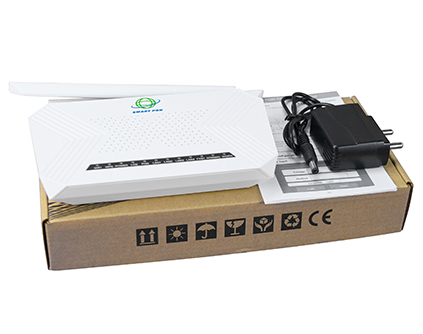

| Packaging: | ONU, Power Adapter |
|---|---|
| Delivery/Lead Time: | 1 |
| Production Capacity: | 100000 |
Product Description
1. Overview
* SUR3107XR is designed as HGU (Home Gateway Unit) in different FTTH solutions. The carrier-class FTTH application provides different services access.
* SUR3107XR is based on mature and stable, cost-effective XPON technology.
* SUR3107XR adopts high reliability, easy management, configuration flexibility and good quality of service guarantees to meet the technical performance of EPON Standard of China Telecom CTC3.0 and GPON Standard of ITU-TG.984.X
2. Functional Feature
* Support EPON/GPON mode and switch mode automatically
* Support Route mode for PPPoE/IPoE/Static IP and Bridge mode
* Support IPv4 and IPv6 Dual mode
* Support 4G WIFI and 2*2 MIMO
* Support CATV interface for Video Service and remote control by Major OLT
* Support LAN IP and DHCP Server configuration
* Support Port Mapping and Loop-Detect
* Support Firewall function and ACL function
* Support IGMP Snooping/Proxy multicast feature
* Support TR069 remote configuration and maintenance
* Specialized design for system breakdown prevention to maintain stable system
3.Application
* Typical Solution：FTTH(Fiber To The Home)
* Typical Business：INTERNET、IPTV、WIFI 、CATV etc
|
