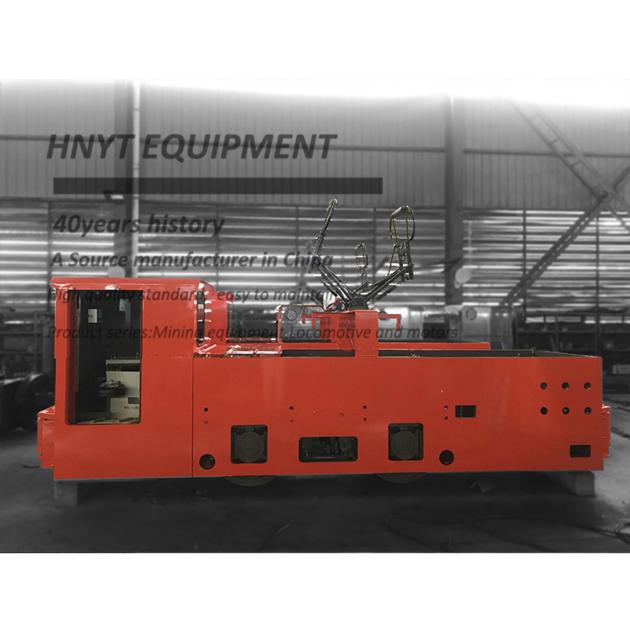

10 ton Xiangtan trolley electric locomotive for gold mine
| Price: | US$ 30000 / Set |
|---|---|
| Minimum Order: | 1 set |
| Payment Terms: | L/C,T/T |
| Port of Export: | Guangzhou |
Product Details
| Model No.: | CJY10 | Brand Name: | HNYT Equipment |
|---|
| Certification: | CE, ISO9001:2008 |
|---|---|
| Specification: |
Adhesive / total weight (t) : 10 ton
Track gauge (mm) : 500.600,762 or 900 Traction (KN) : 13.05kN~18.93kN Max. Traction (KN) : 24.5kN Speed(km/h) : 11 Voltage : 250V or 550V Power (KW) : 24kw *2 or 30 kw*2 Dimensions Length(mm) : 4550 Width(mm) : 1050,1212,1350 Height(mm) : 1600mm Wheelbase (mm) : 1100 ,1220 mm Min Curve radius (m) : 7 ,10 m Wheel diameter (mm) : Φ680mm Controller : Resistance or IGBT or AC controller Braking method : Mechanical or air Brake |
Packaging & Delivery
| Packaging: | 1 set per wooden box |
|---|---|
| Delivery/Lead Time: | In 15 days after payment |
| Production Capacity: | 1000 sets per year |
Product Description
Trolley electric locomotive is a kind of rail transportation traction equipment, powered by transformers and overhead lines. Mainly used in mines where there is no risk of explosion. Because of its special power supply mode, the trolley electric locomotive has no limit on the cruising range. Therefore, it is suitable for long-term and long-distance use. There are also many options in terms of speed regulation and braking methods. Speed control methods include resistance speed control, chopping speed control and frequency conversion speed control. Braking methods include pure mechanical braking, hydraulic braking and compressed air braking. In addition, electric braking can also be selected as an auxiliary braking method.
Adhesive / total weight (t) : 10 ton
Track gauge (mm) : 500.600,762 or 900
Traction (KN) : 13.05kN~18.93kN
Max. Traction (KN) : 24.5kN
Speed(km/h) : 11
Voltage : 250V or 550V
Power (KW) : 24kw *2 or 30 kw*2
Dimensions Length(mm) : 4550
Width(mm) : 1050,1212,1350
Height(mm) : 1600mm
Wheelbase (mm) : 1100 ,1220 mm
Min Curve radius (m) : 7 ,10 m
Wheel diameter (mm) : Φ680mm
Controller : Resistance or IGBT or AC controller
Braking method : Mechanical or air Brake
|
