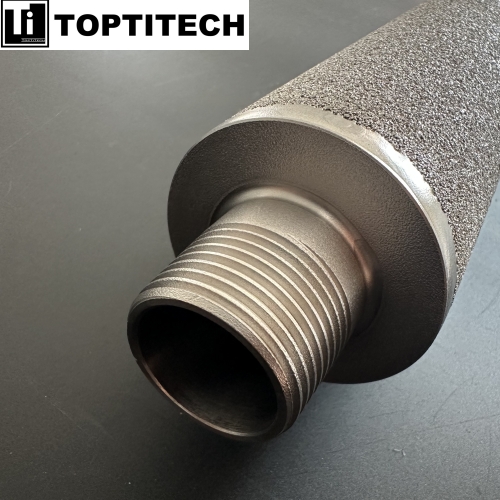

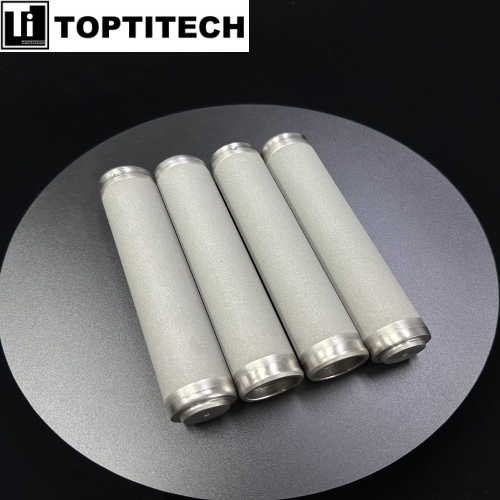

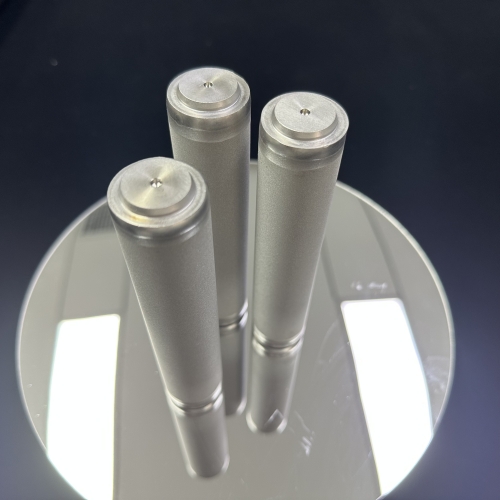

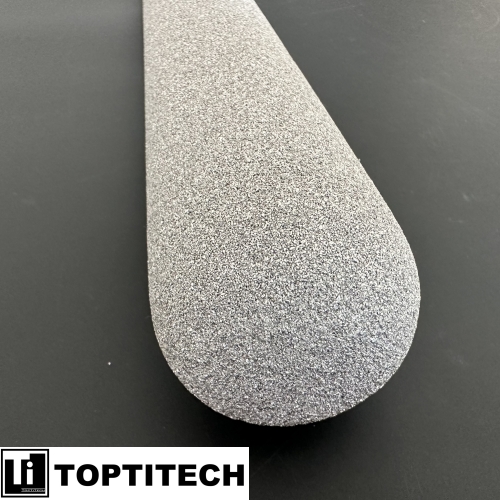

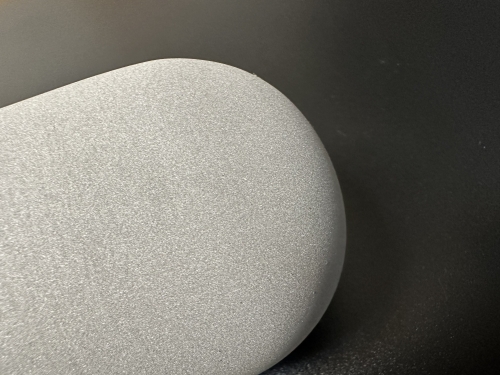

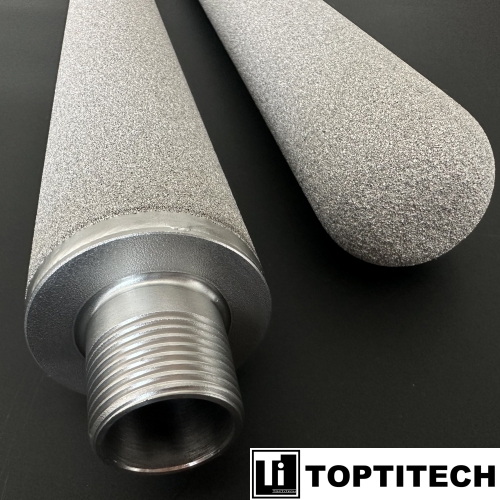

10 Micron Titanium Porous Filter Tube for Flow Control

Product Introduction


Sintered metal powder filter elements are advanced filter components that have undergone the meticulous process of sintering. This technique enhances their porosity, enabling their versatile use in applications ranging from liquid and gas filtration to gas/liquid flow regulation and ventilation tasks.

Distinguished from alternative filter materials like glass fiber, stainless steel wire mesh, ceramics, and filter paper, sintered metal filters exhibit superior mechanical and compressive strength. Particularly in environments with sustained high temperatures and corrosive conditions, sintered metal filter elements excel in refining the filtration process while curbing operational expenses.

Specifications

Material: Grade 1 Titanium Powder
Diameter: 20mm

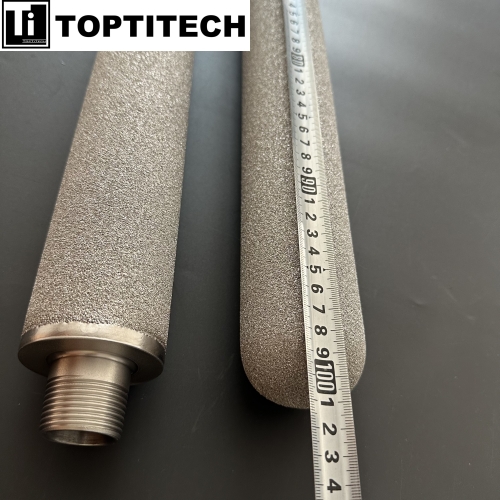

Length: 200mm
Pore Size: 10 Micron
Connector: Quick-Release Connector
Temperature Resistance: Up to 300­C

Features

Reusability and adaptability
Exceptional filtering efficiency
High tolerance to thermal shock
Extended service life (cleanable and reusable)
Resilient to high pressure and temperature
Sturdy and fracture-resistant
Corrosion-resistant
Exceptional thermal shock resistance
Offers a range of geometric possibilities
Maintains fine tolerance to preserve physical properties

Applications

Removal of dust, bacteria, and oil fog from gas and steam
Noise reduction and gas buffering
Catalyst recycling
Decarburization filtration
Filtration of viscous liquids
Filtration of strong polar solvents
Particle retention in off-gas from fluidized beds
Filtration and separation in pharmaceutical, beverage, food, metallurgy, petroleum, and other industries

Manufacturing Process of Sintered Metal Filters

The production of sintered metal filters involves pressing metal powder into a customized mold with precise pressure to ensure particle adhesion at contact points. The 'green' strength of the part pre-sintering is contingent upon various factors of the metal powder like particle size, composition, and shape. Following molding, the 'green' part undergoes controlled heating or sintering at a temperature below the metal's melting point, allowing for controlled shrinkage. The sintering process transforms the original powder particles into a fully interconnected porous metal structure, dictating the filtration medium's micron class. Moreover, the porosity of the sintered medium is a defining characteristic, tailored to the specific demands of individual systems.

Package and Shipment

1. Sintered Filters are usually packed in cartons, wrapped in soft film, and fixed in a box filled with industrial foam cotton, and the outer baler is packed with plastic bags with no damage during transportation.

2. Wooden box export packaging can also be customized. The foam cotton can be filled and fixed, the external box is sealed, the bottom is specified, the whole packaging is processed, and the goods can be delivered to the designated place of the customer without damage.
