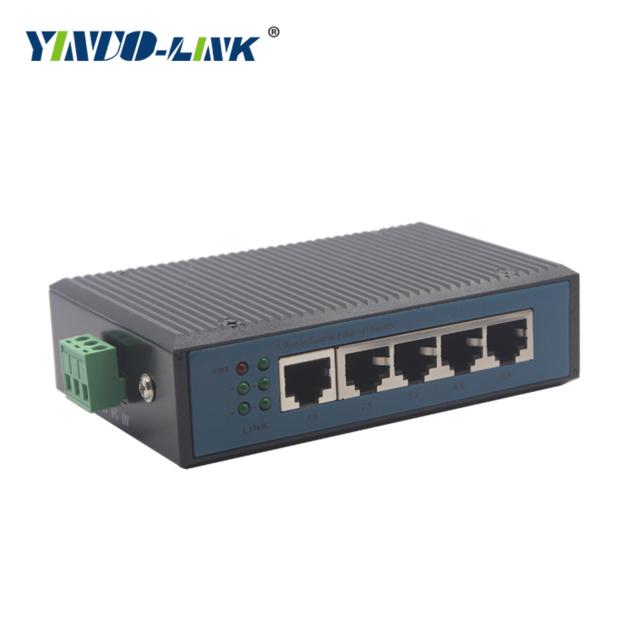

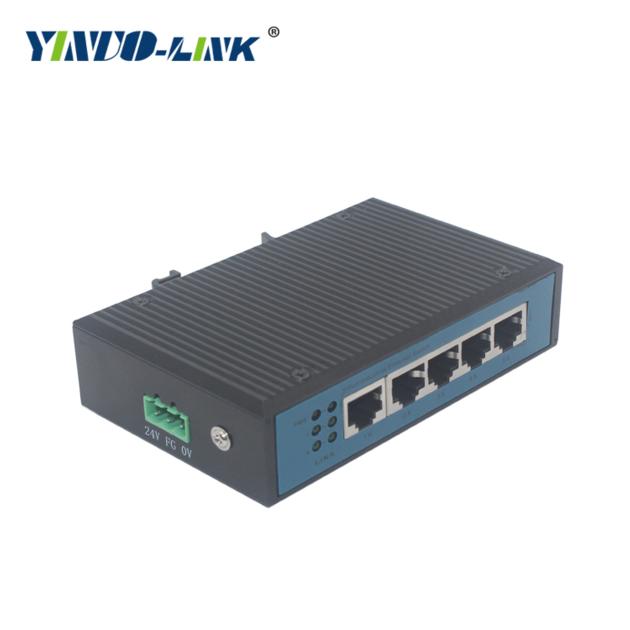

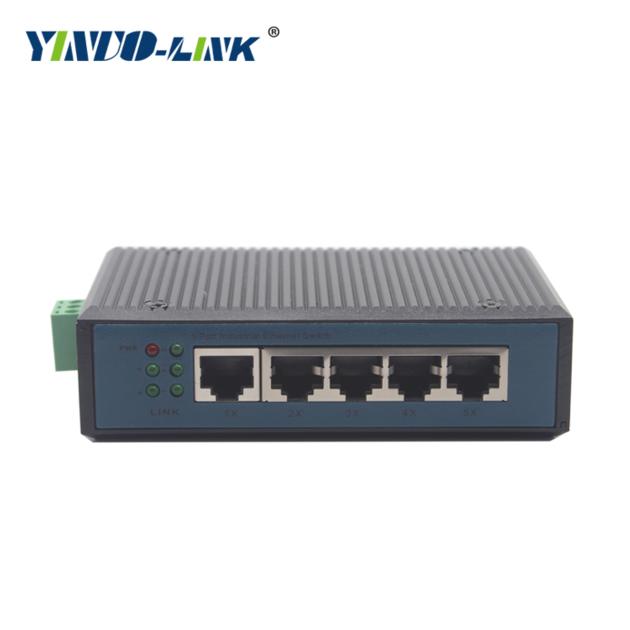

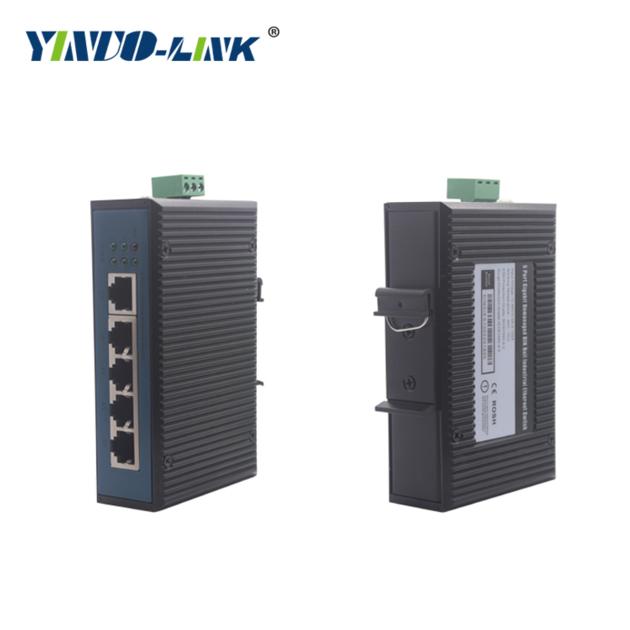

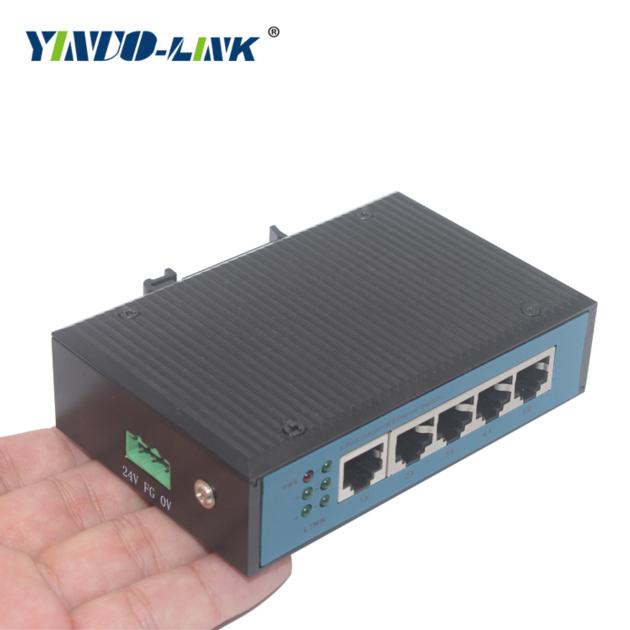

10/100/1000M din rail mounting 5-port Industrial PoE Switch for monitoring
| Price: | US$ 60 / Piece |
|---|---|
| Minimum Order: | 100 pieces |
| Payment Terms: | T/T |
| Port of Export: | shenzhen |
Product Details
| Model No.: | YN-IES10503 | Brand Name: | YINUO-LINK |
|---|
| Certification: | CE ROHS |
|---|---|
| Specification: | YN-IES10503 is a type of unmanaged industrial Ethernet switch with 5 port 10/100/1000Base-T(X ) Ethernet port , supports IEEE802.3, EEE802.3u standard, support positive and negative DC input protection to prevent burnout. With no fan and low power consumption design, IP40 grade protection ensures reliable work in harsh environment. LED indicator is helpful to monitor the status of network connection. DIN rail installation and wide operating temperature (-40~+75℃),it fulfil the industrial working environment, can provide reliable and quickly solution for your Ethernet device. |
Packaging & Delivery
| Packaging: | one piece per carton |
|---|---|
| Delivery/Lead Time: | stock |
| Production Capacity: |
Product Description
1. Adopt 5 ports industrial grade imported chips
2. PCB using TG180 imported PCB material,Immersion gold craft and antioxidant ability will be good
3. Crystal use Japanese Kyocera brand, support -40~+125¦C
4. Ethernet port is gold-plated 1.5U, it’s also very stable with many time plugs
5. DC to DC power IC using imported MPS, maximum support 12-48V
6. Capacitors all made by Murata Japan
Features
1. Support 5 port 10Base-T/100Base-TX/1000Base-TX Ethernet
2. Support IEEE802.3/802.3u store and forward
3. Support Ethernet 10/100M self-adaption
4. 12~48VDC wide voltage power supply input
5. No fan, low consumption design
6. IP40 protection, high strength metal shell, DIN rail mounted
7. -40~75℃ working temperature
8. Support MAC address self-learning
|
