0.8um Microns Titanium Sintered Porous Metal Filter Cartridge

Product Introduction

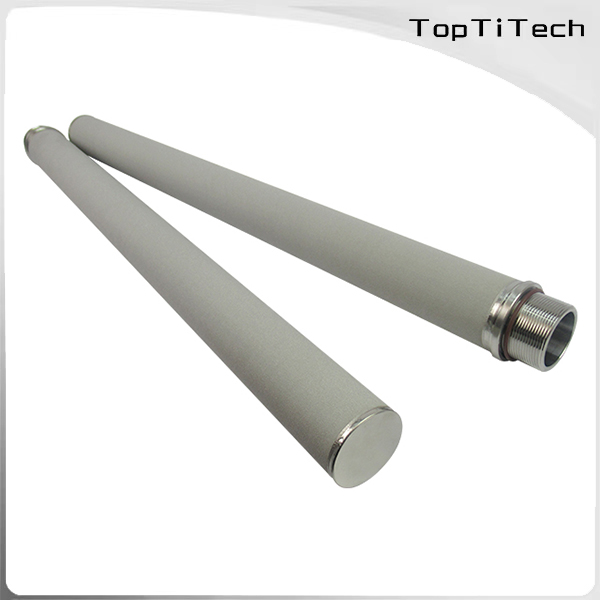

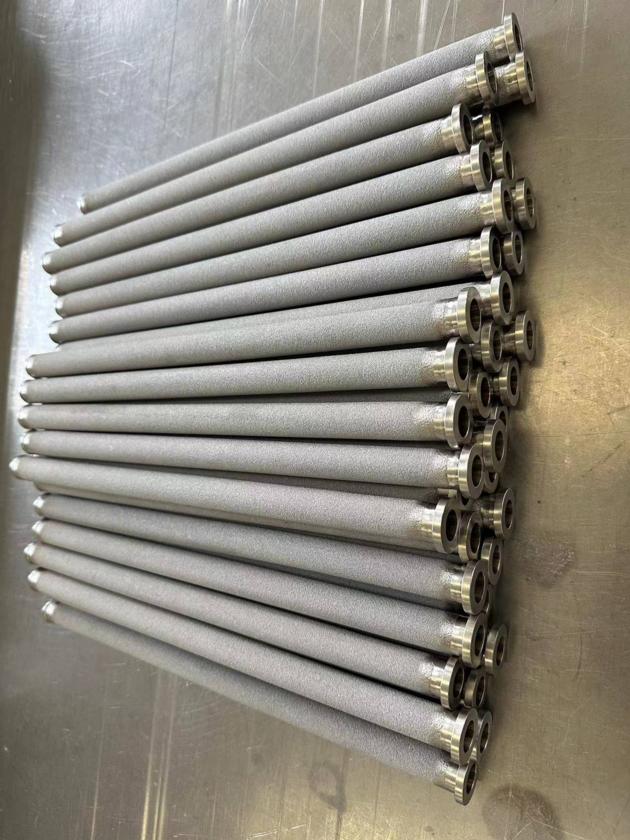

TOPTITECH’s Titanium Sintered Porous Metal Filter Cartridge is a porous titanium filter designed for applications involving heat, gas, aggressive chemicals cryogenics, or polymers. Mae is from titanium powder that is sintered to form a rugged, fixed pore structure. TOPTITECH’s filters are made to withstand temperature extremes, high pressures, and repeated cleaning/backwash cycles. There are no longitudinal seams, for improved mechanical strength and corrosion resistance. TOPTITECH’s filters are produced in a range of configurations and micron ratings to perform in a variety of liquid and gas applications.

TOPTITECH±s Titanium Sintered Porous Metal Filter Cartridge is an effective solid-liquid separation cartridge that can be used for the filtration of most liquids. It has a perfect solid-liquid separation effect on low-viscosity liquid with rigid particles. The best results are achieved when used in combination with a titanium rod filter.

Additionally, TOPTITECH±s Titanium Sintered Porous Metal Filter Cartridge can operate at 280℃, which is a challenging task for a conventional filter cartridge. With all these outstanding advantages mentioned above, TOPTITECH±s filter is suitable for applications such as decarbonization and filtration of liquids, chemical reagents, ozonated water filtration, steam filtration, etc.


Parameter

Brand: TOPTITECH

Material: Pure titanium

Porosity:35%-60%

Length: 10-1500mm

Thickness: 1-20mm

Diameter: φ20–φ200mm

Filtration precision: 0.22-120um

Compressive strength: 3Mpa/cm2

Work environment: Nitric acid, sulfuric acid, acetic acid, oxalic acid, phosphoric acid, 5% hydrochloric acid, molten sodium, liquid hydrogen,

nitrogen, hydrogen sulfide, acetylene, water vapor, hydrogen gas, carbon dioxide gas


Features

1. Titanium sintered porous metal filter cartridges are designed with a channel crisscrossed structure that provides optimal filtration performance. The material is highly resistant to high temperatures and thermal shocks, ensuring reliable performance in extreme environments.

2. These filter cartridges are highly corrosion-resistant and can withstand exposure to a variety of corrosive substances, including acids, alkalis, and organic materials. Stainless steel filters are also available that can resist the corrosive effects of acids and alkalis, making them well-suited for sour gas filtration applications.

3. Titanium sintered porous metal filter cartridges offer exceptional strength and toughness, making them suitable for use in high-pressure environments. The material can withstand significant pressure without breaking or deforming, ensuring reliable filtration performance in demanding industrial applications.

4. These filter cartridges are designed to be easily welded and loaded/unloaded, making them simple to integrate into industrial systems. The lightweight material is cost-effective and versatile for use in a variety of industrial applications, including filtration systems, chemical processing equipment, and heat exchangers.


Applications

1. Titanium sintered porous metal filter cartridges are an ideal high-pressure filter medium used in various industrial applications, including oilfield oil sands separation, due to their exceptional strength and durability.

2. These filter cartridges are commonly used in machinery, ships, and other equipment to filter fuel, lubricating oil, and hydraulic start oil. The material±s exceptional corrosion resistance makes it ideal for use in harsh industrial environments.

3. In the chemical industry, titanium sintered porous metal filter cartridges are used in chemical plants to filter and process a variety of substances. The material±s high chemical resistance and stability make it well-suited for use in demanding chemical processing applications.

4. The high-temperature resistance of titanium sintered porous metal filter cartridges makes them ideal for use in high-temperature gas dust removal applications. They are also commonly used to filter food and medical substances, thanks to their excellent filtration performance.

5. Titanium sintered porous metal filter cartridges are used in water treatment and distribution systems, gas distribution systems, and fluidized bed applications due to their exceptional filtration performance and durability. They provide reliable filtration results, making them an ideal choice for these critical industrial applications.



Package and Shipment

1. Sintered Filters are usually packed in cartons, wrapped in soft film, and fixed in a box filled with industrial foam cotton, and the outer baler is packed with plastic bags with no damage during transportation.

2. Wooden box export packaging can also be customized. The foam cotton can be filled and fixed, the external box is sealed, the bottom is specified, the whole packaging is processed, and the goods can be delivered to the designated place of the customer without damage.
