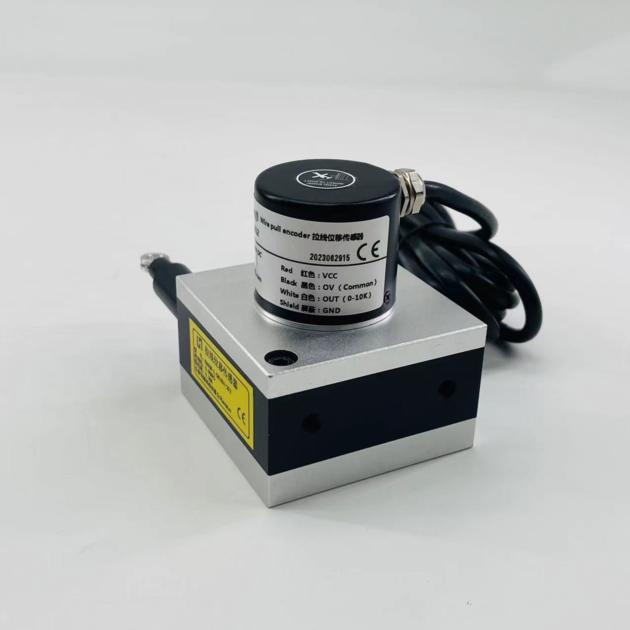

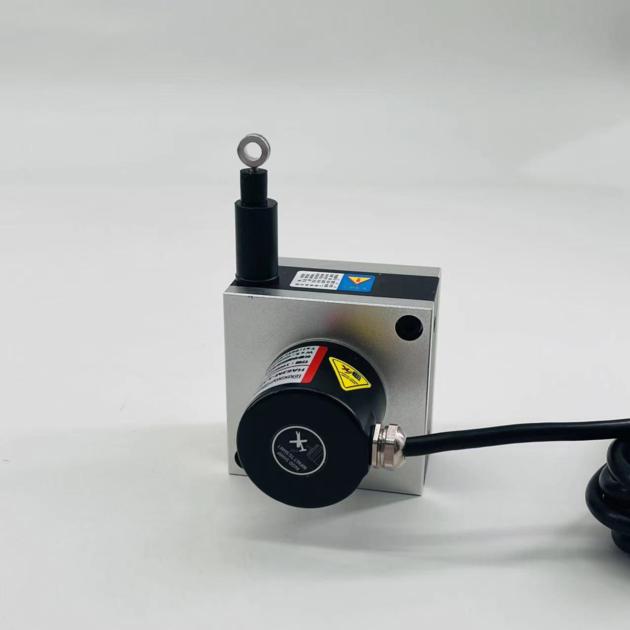

0-1500mm 4-20mA wire pull encoder string potentiometers
| Price: | US$ 52 / Bag |
|---|---|
| Minimum Order: | 1 |
| Payment Terms: | L/C,Western Union,D/P,D/A,T/T,MoneyGram |
| Port of Export: |
Product Details

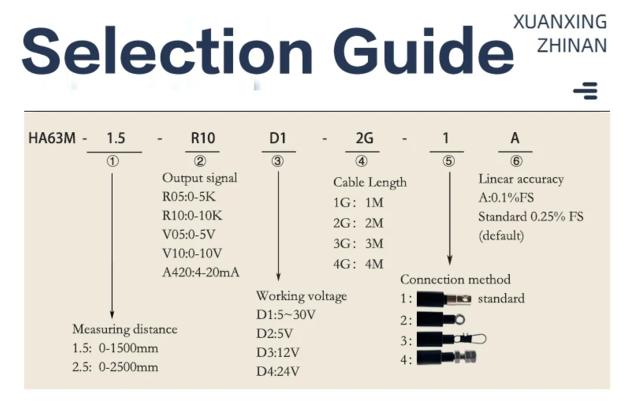

| Model No.: | HA63M-1.5R10D1-2G1A | Brand Name: | HUAYUE |
|---|
| Certification: | |
|---|---|
| Specification: | HA63M-1.5R10D1-2G1A |
Packaging & Delivery
| Packaging: | |
|---|---|
| Delivery/Lead Time: | |
| Production Capacity: |
Product Description

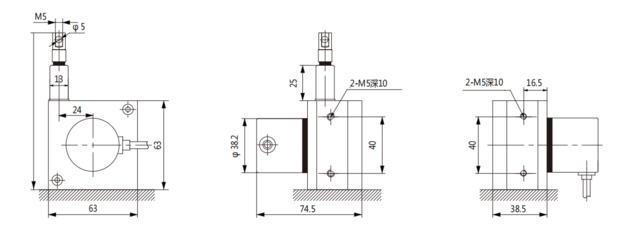

If you are interested, please contact us to provide you with more product information and drawing dimensions.
Choose the optimal transportation route for you.
Sensor type :Analog signal cable displacement sensor
Measuring Range :0-1500mm;0-2500mm
Linear Accuracy: 0.25% FS or 0.1% FS
Repeatability Accuracy: 0.01%

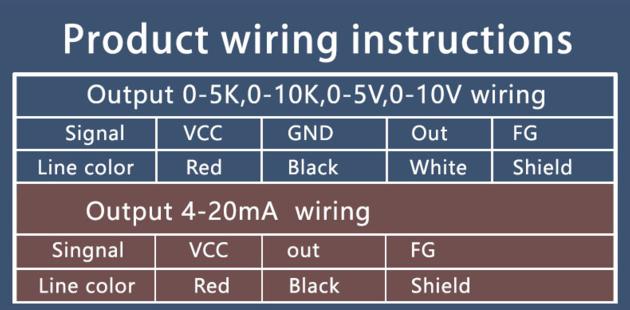

Output :4-20mA（two-wire）;0-10V;0-5V;0-10K;0-5K
Wire retraction force : 4N
Maximum reciprocating speed :600mm/s
Protection level outside the pull box: IP54
Life :More than 2 million reciprocating cycles
Operation temperature: -30℃~+90℃
Working voltage :5-30V;5V;12V;24V
Cable Length: Optional；Standard configuration 2m
Wire rope diameter: 0.6mm Imported coated steel wire rope
Housing Material: Aluminium alloy, oxidation surface treating,wear and corrosion prevention
4 connection methods, cylindrical, circular, paperclip, and thread locking
|
